64tbirdsequencer - 1964 Thunderbird Sequencer Wiring
Note: To view the diagrams full size, you can click on the photo and it will be displayed by itself on the screen scaled to fit the screen. Then you can click on the photo again to go to the full size photo where you can then pan around with the arrow keys.

1 Title Page.png

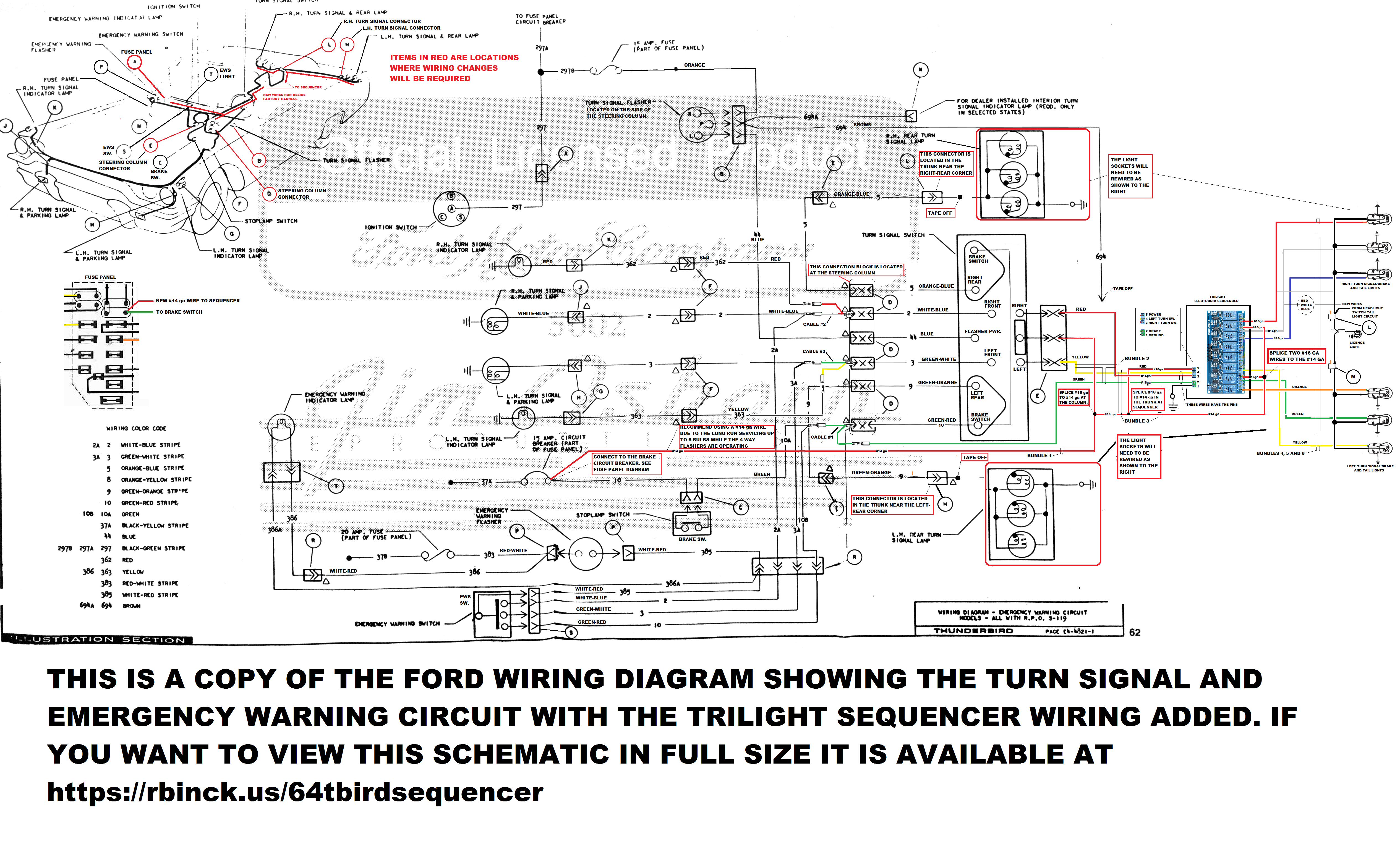

2 Wiring Changes.png

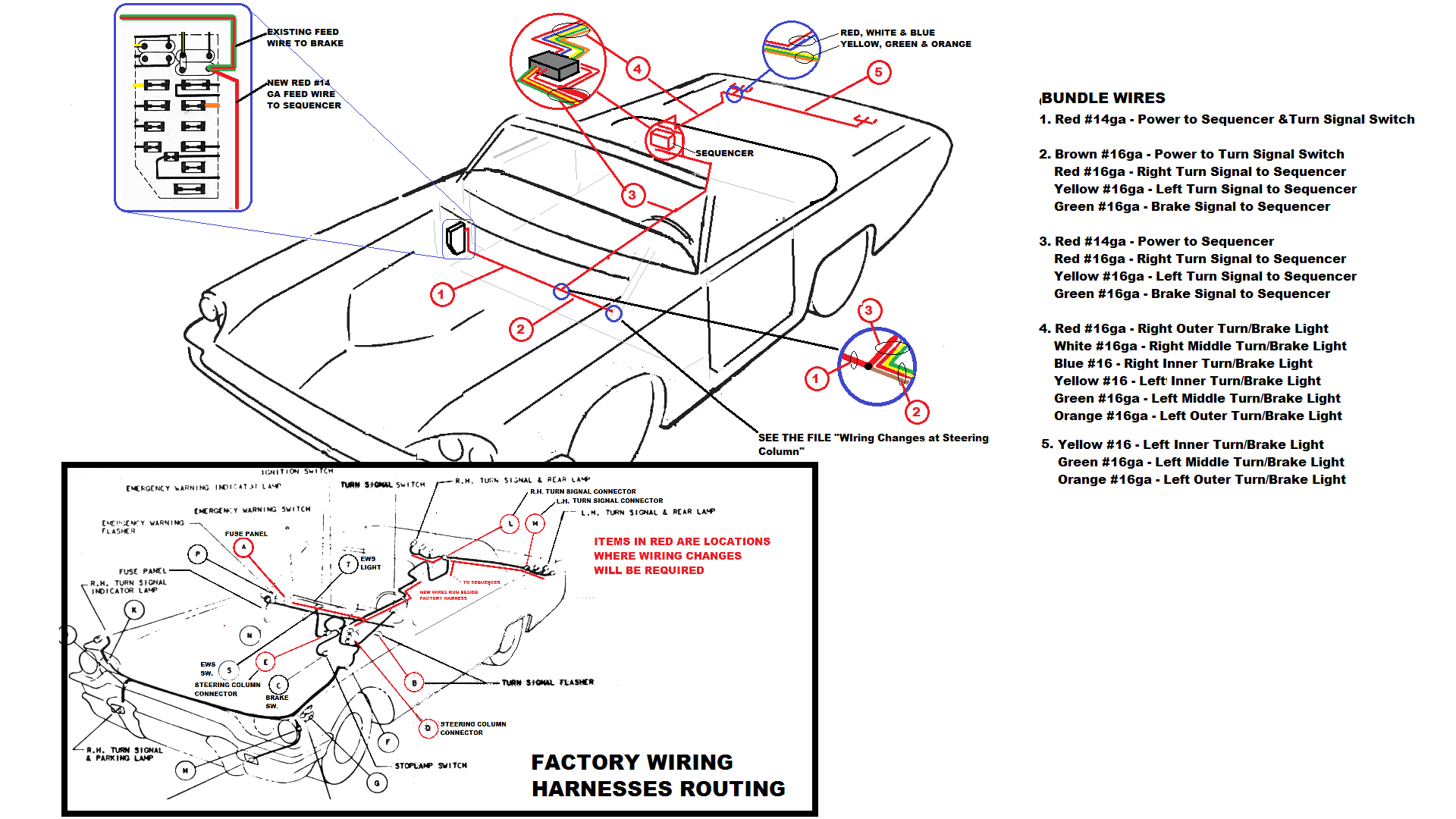

2.2 New Wire Bundles.png

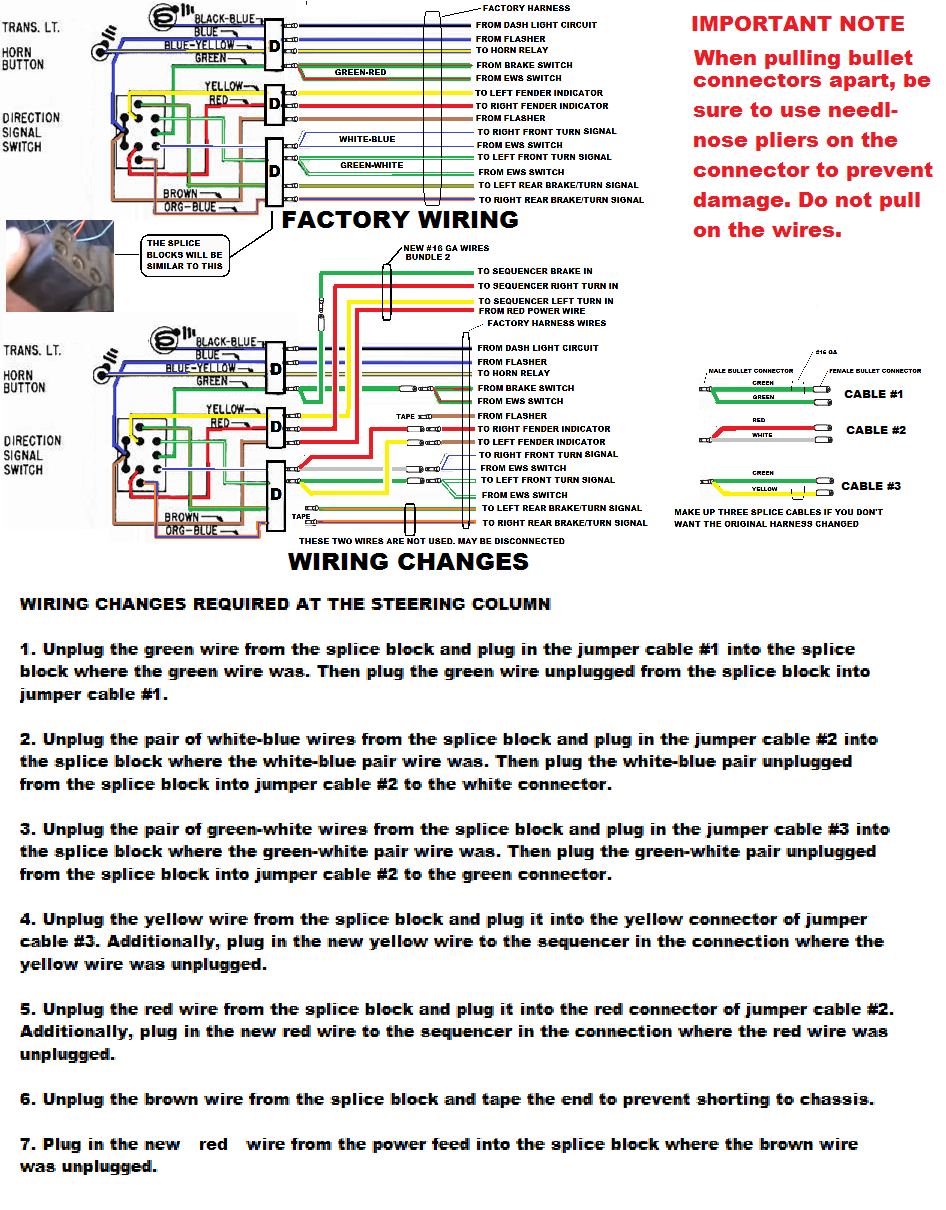

3 Wiring Changes at Steering Column.png

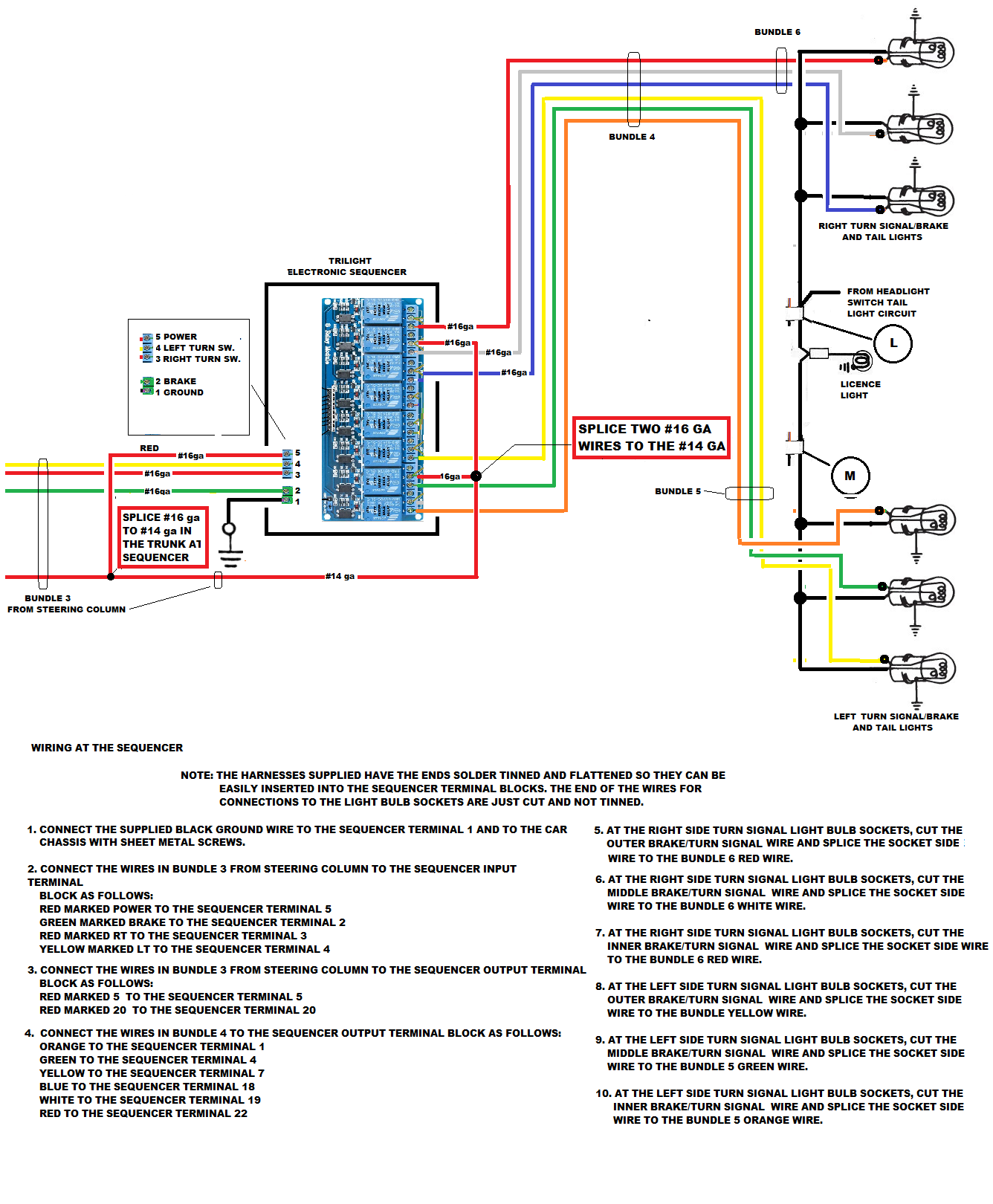

4 Wiring in Trunk.png

5 Trilight turn signal sequencer 1964 Thunderbird - Installation Man

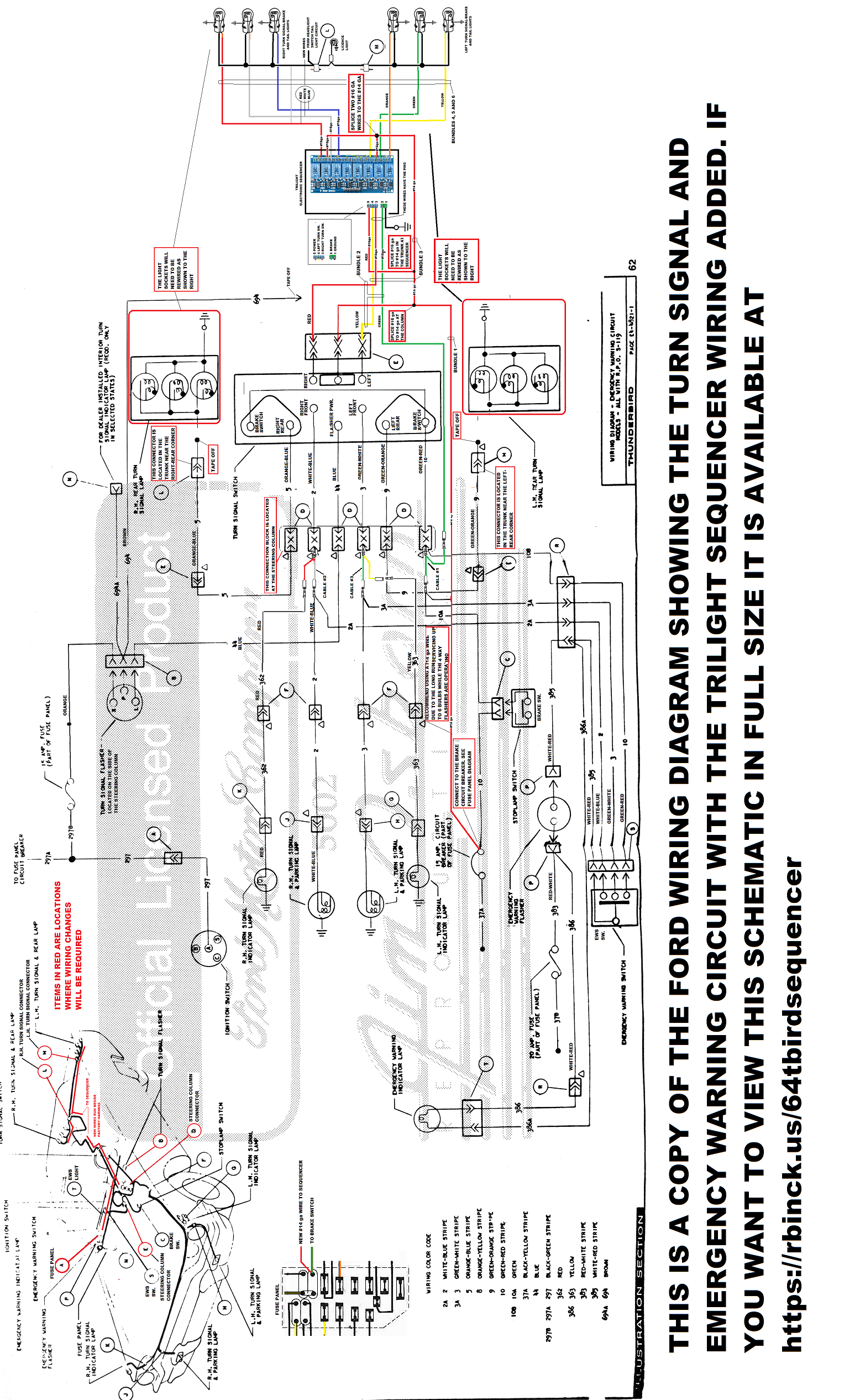

A1-2a Wiring Changes-rotated.png

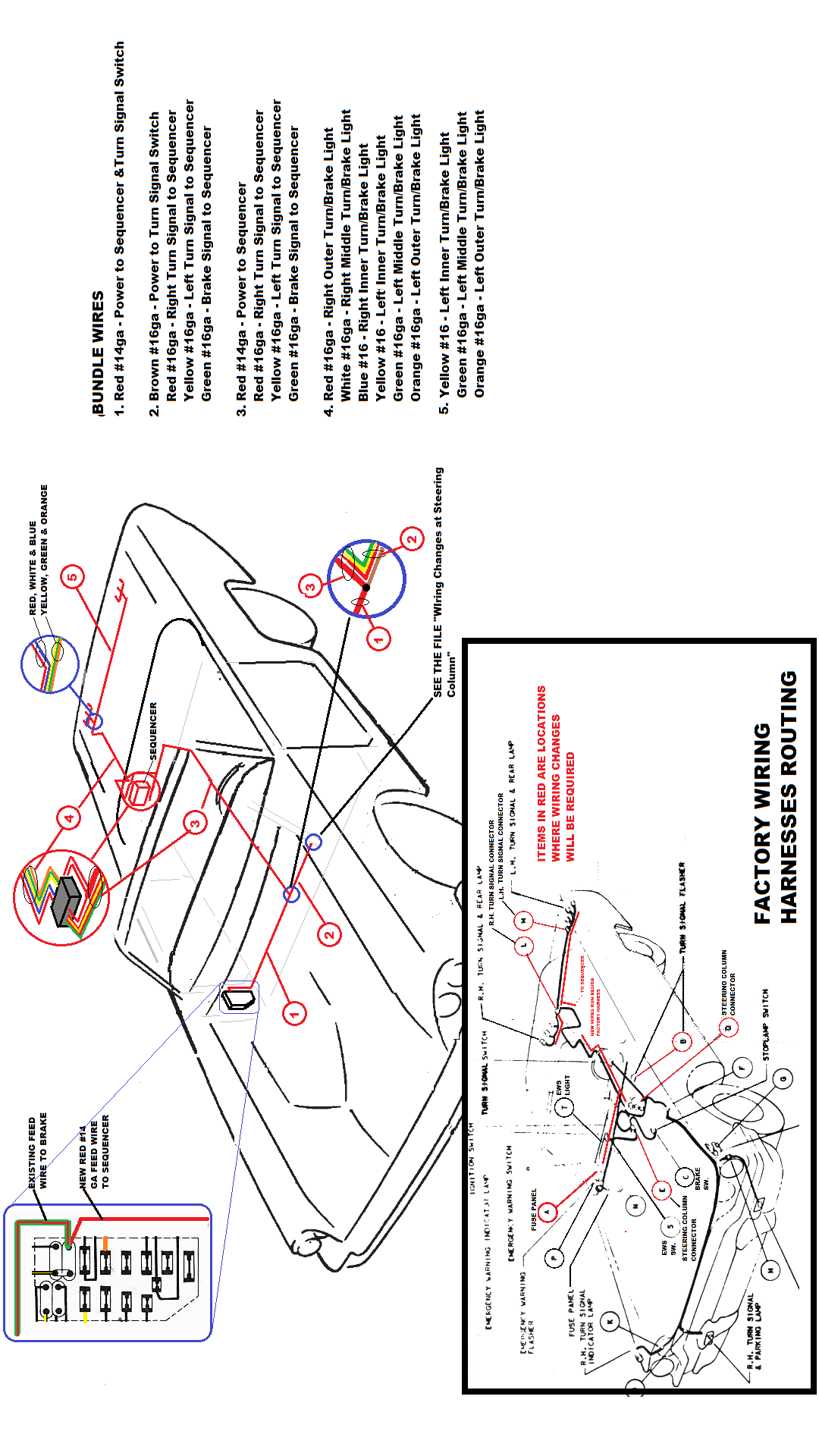

A2-2.2 New Wire Bundles-rotated.png

A3-3a Wiring Changes at Steering Column - factory wiring.png

A3-3b Wiring Changes at Steering Column - wiring changes.png

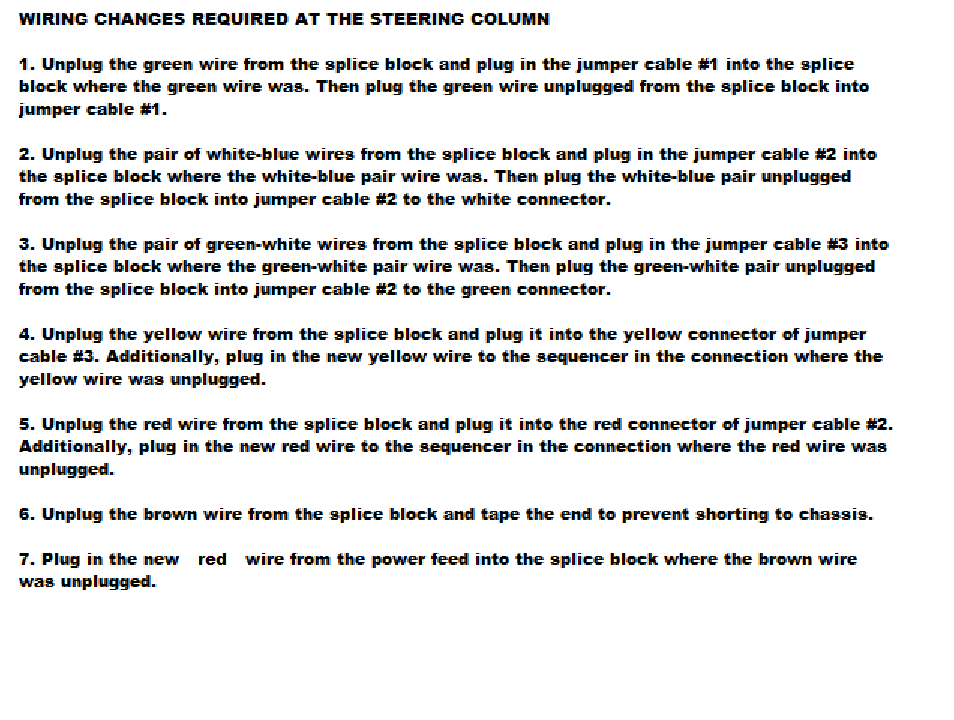

A3-3c Wiring Changes at Steering Column - instructios.png

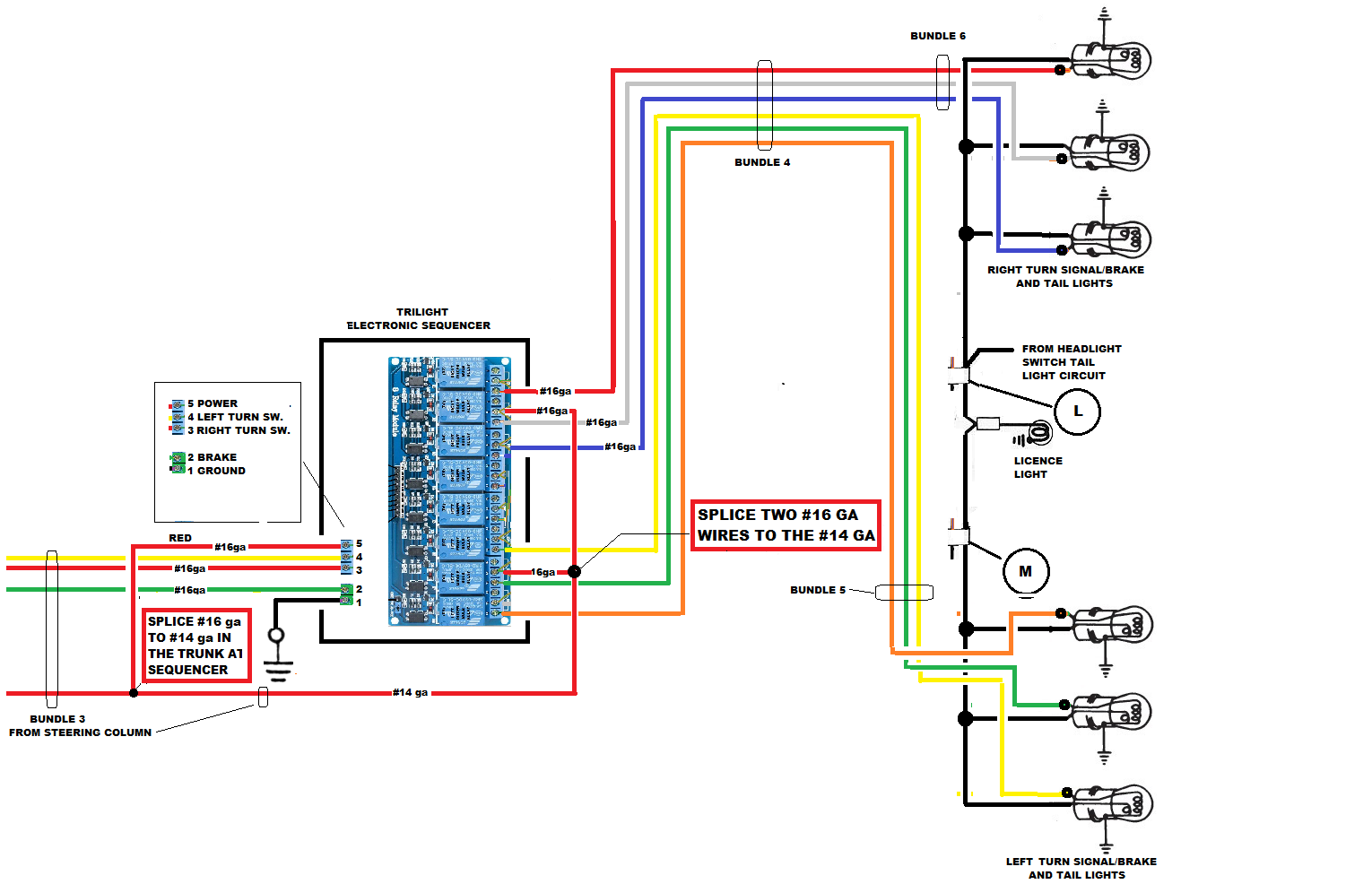

A4-4a Wiring in Trunk - rotated.png

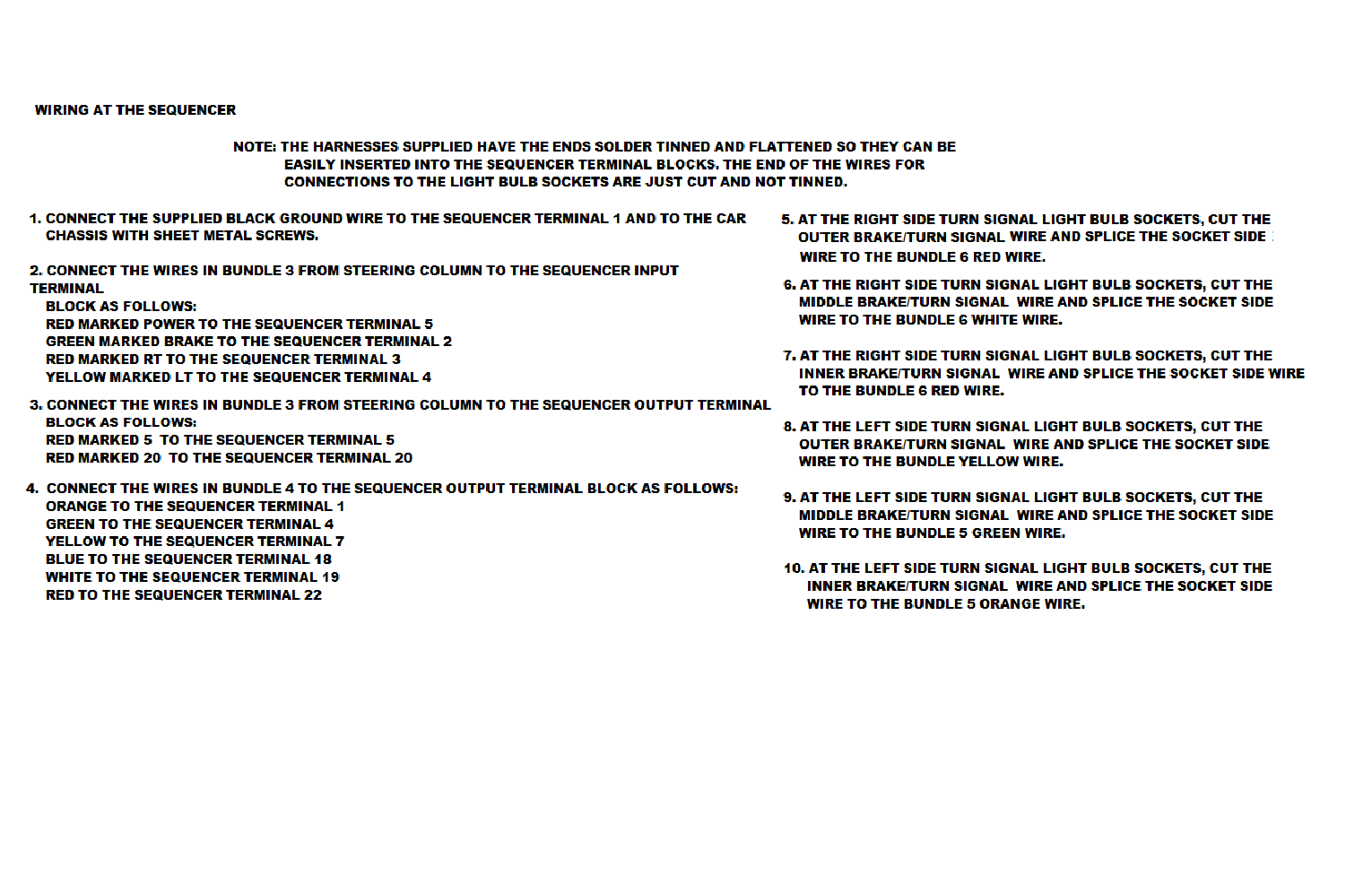

A4-4b Wiring in Trunk - instructions.png

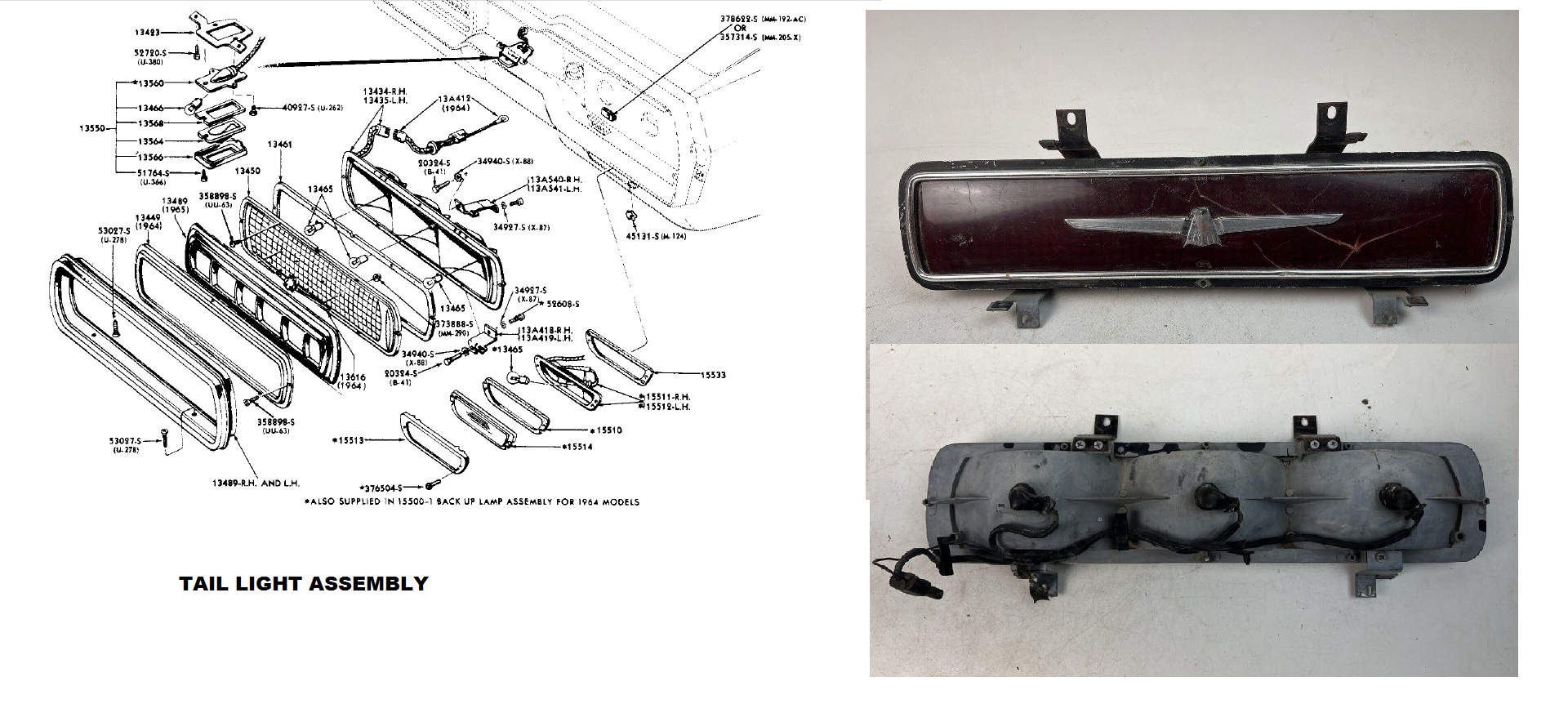

A5-5 Tail Light Assembly.png
