63floyd - WIRING DIAGRAMS FOR AFTERMARKET WIRING KIT
Note: To view the diagrams full size, you can click on the photo and it will be displayed by itself on the screen scaled to fit the screen. Then you can click on the photo again to go to the full size photo where you can then pan around with the arrow keys.

099 - Fuse Panel Layout.jpg

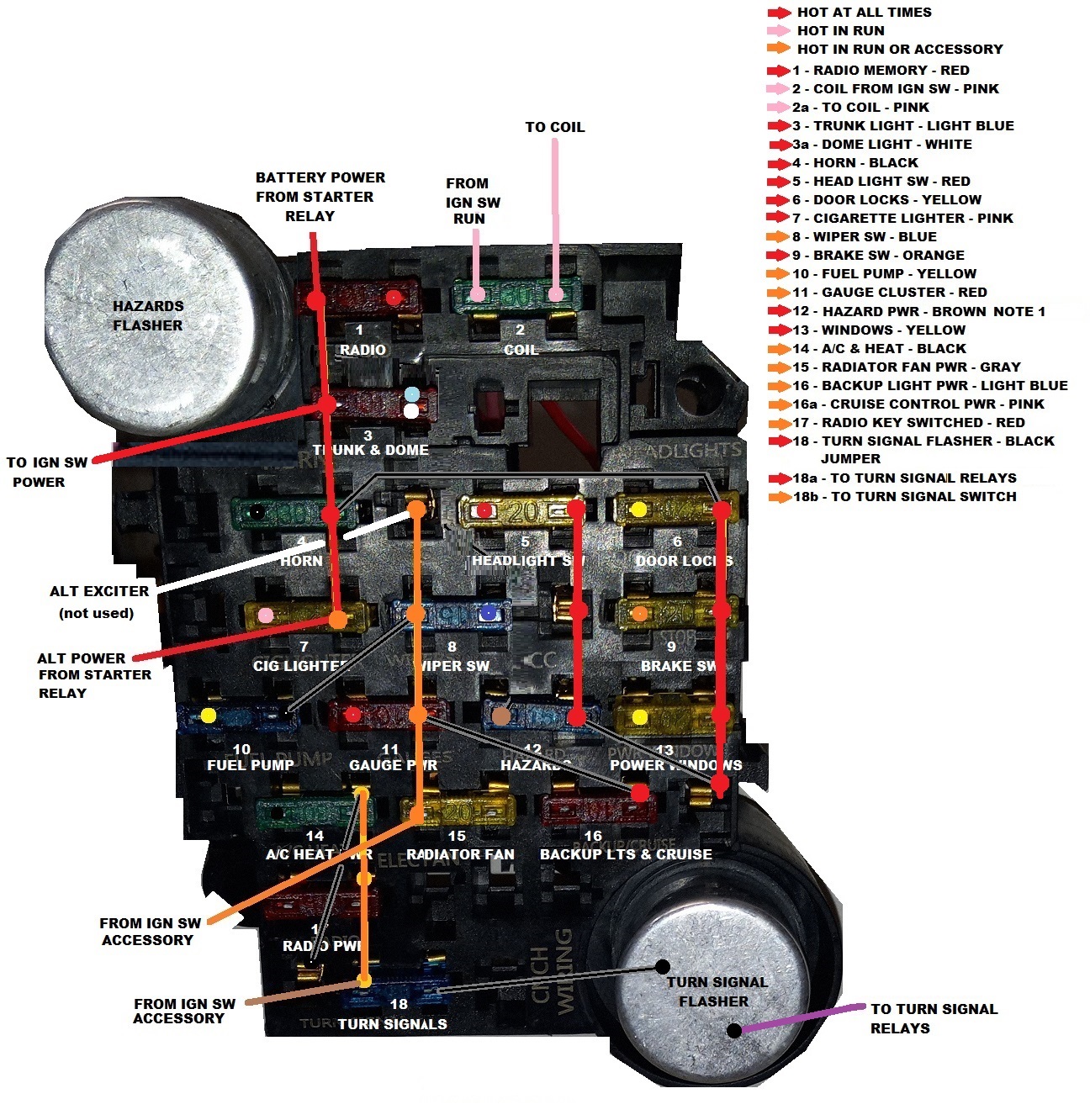

100 - Fuse Panel Wiring.jpg

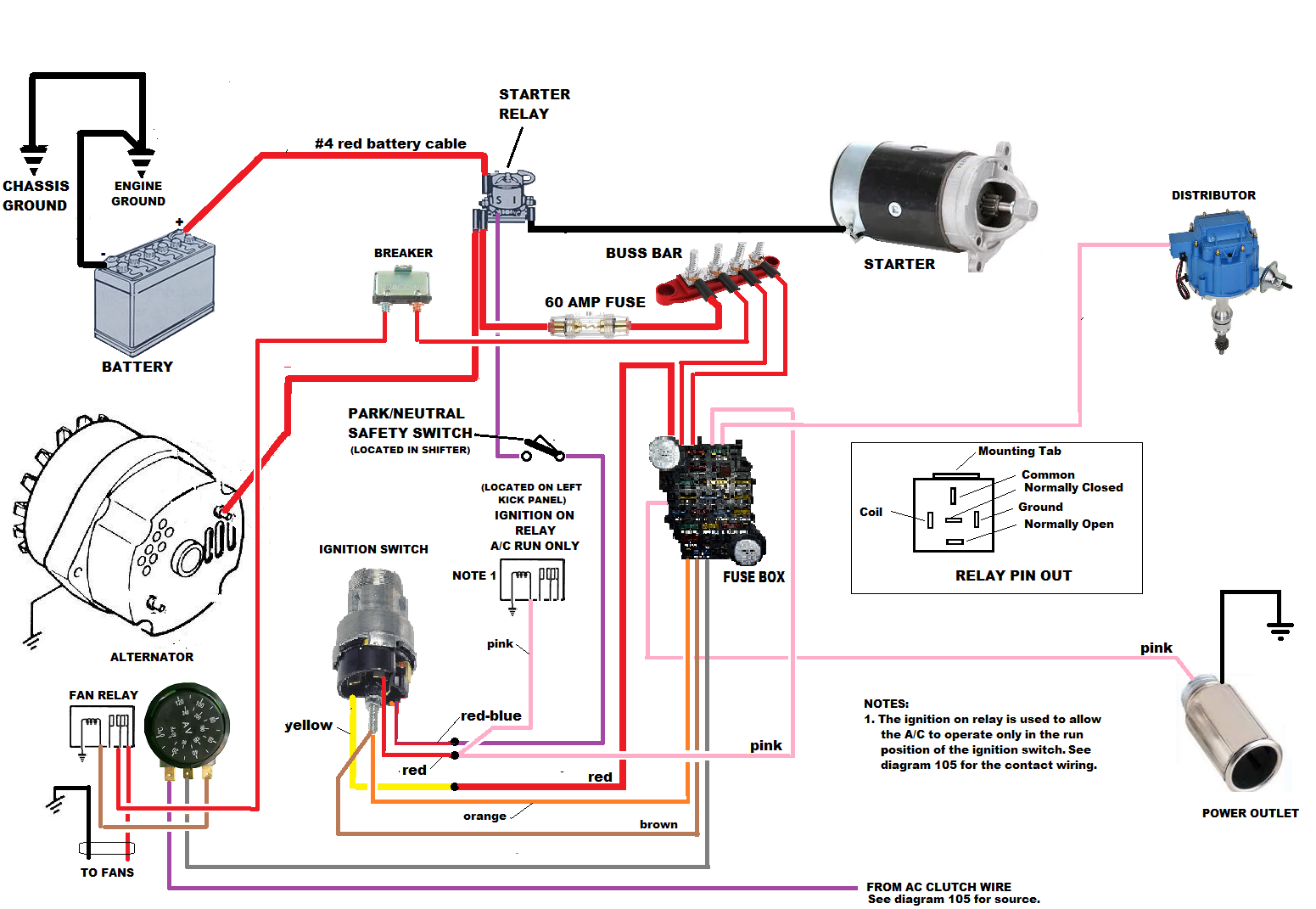

101 - Ignition, Starting & Charging.png

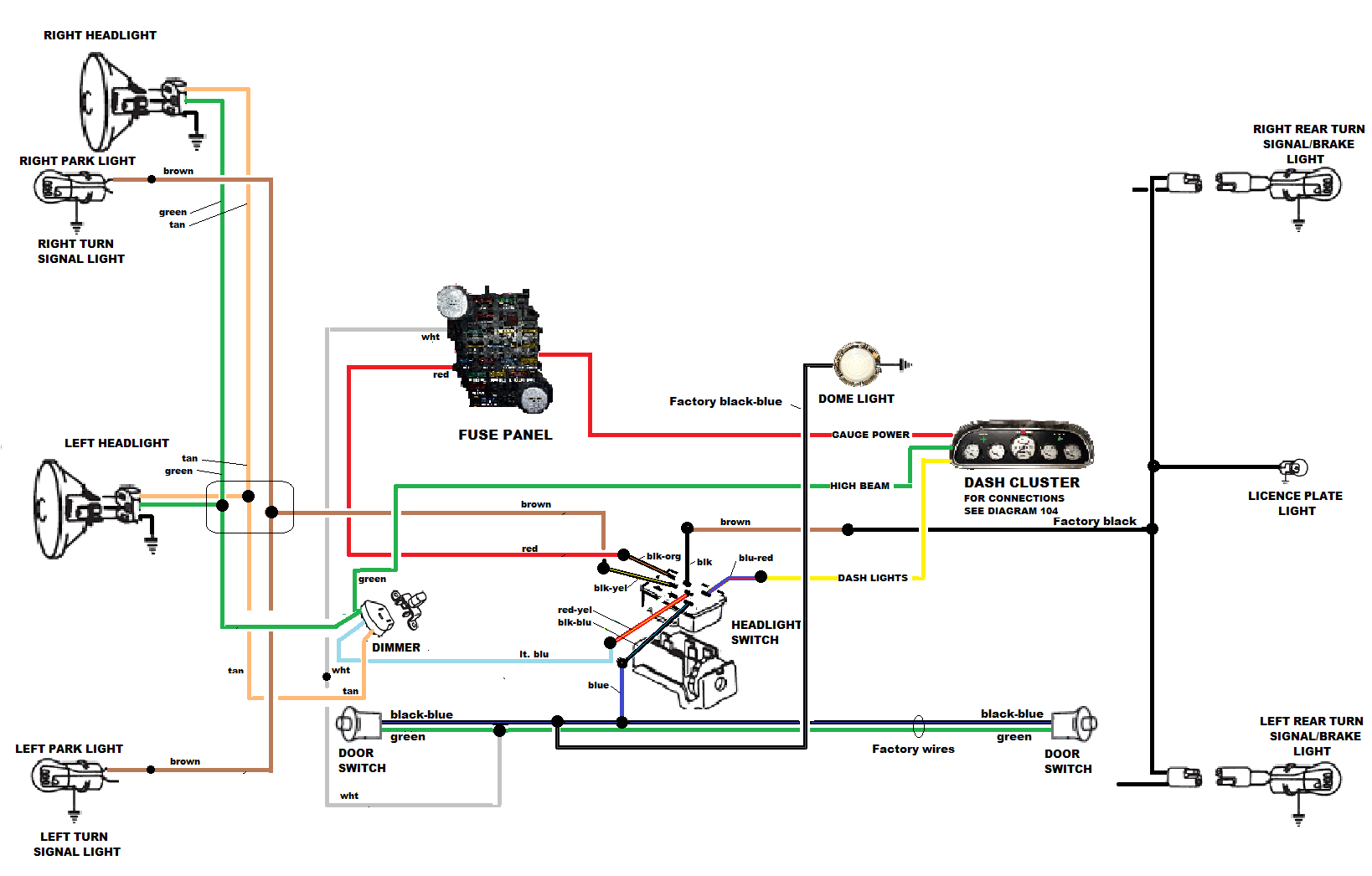

102 - Headlights, parking lights and tail lights.png

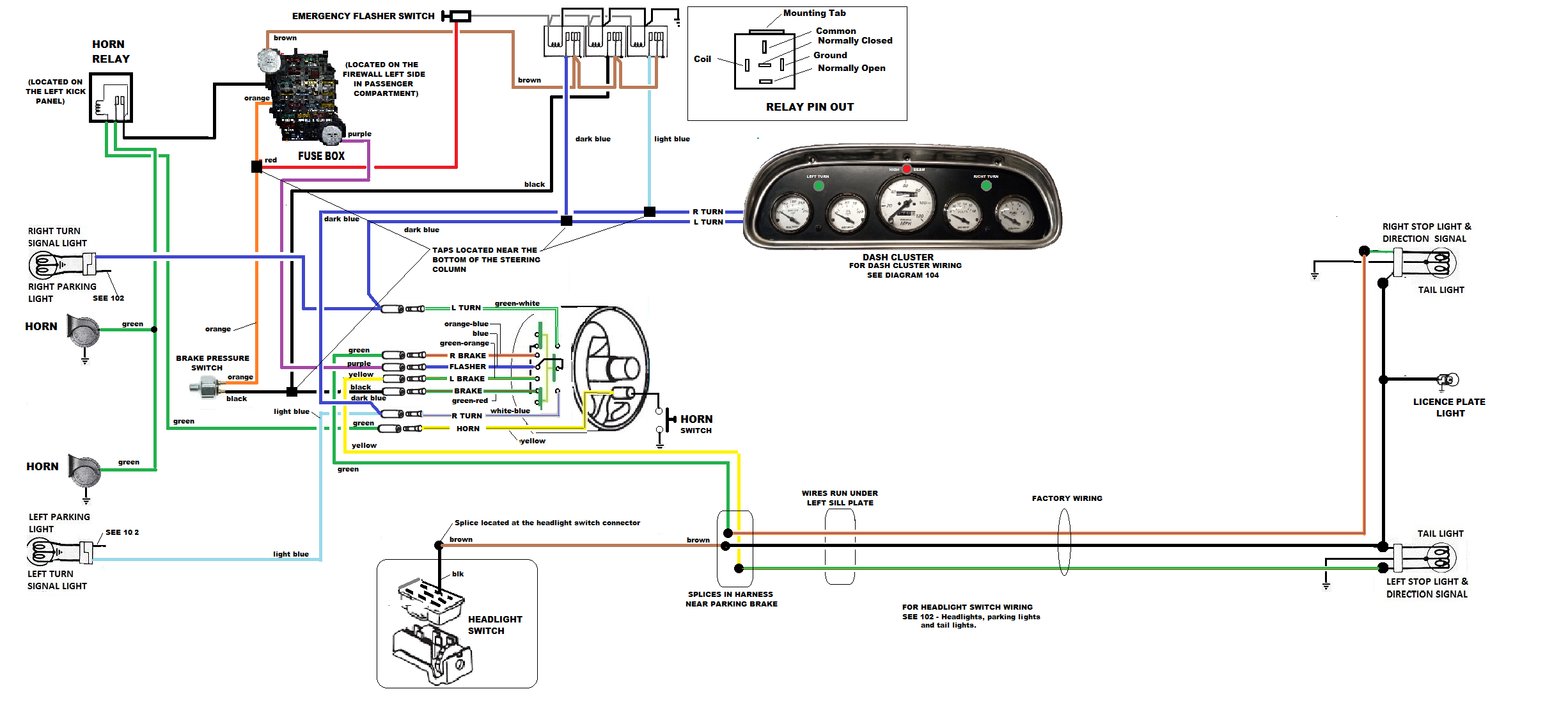

103 - Turn, Reverse and Brake Lights.png

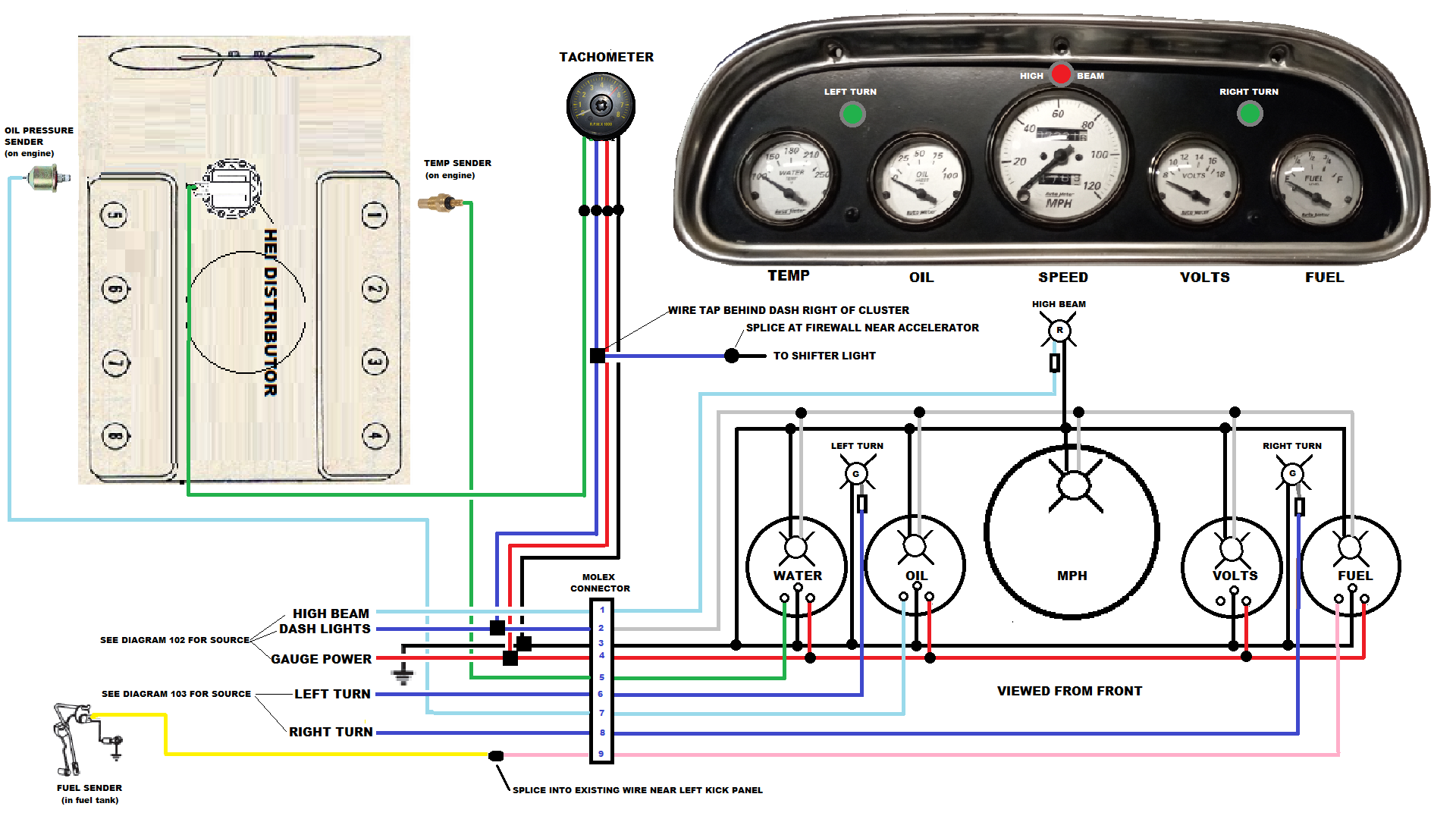

104 - Gauge Cluster.png

105 - Accessories - Wiper - AC - Heater - Radio.png

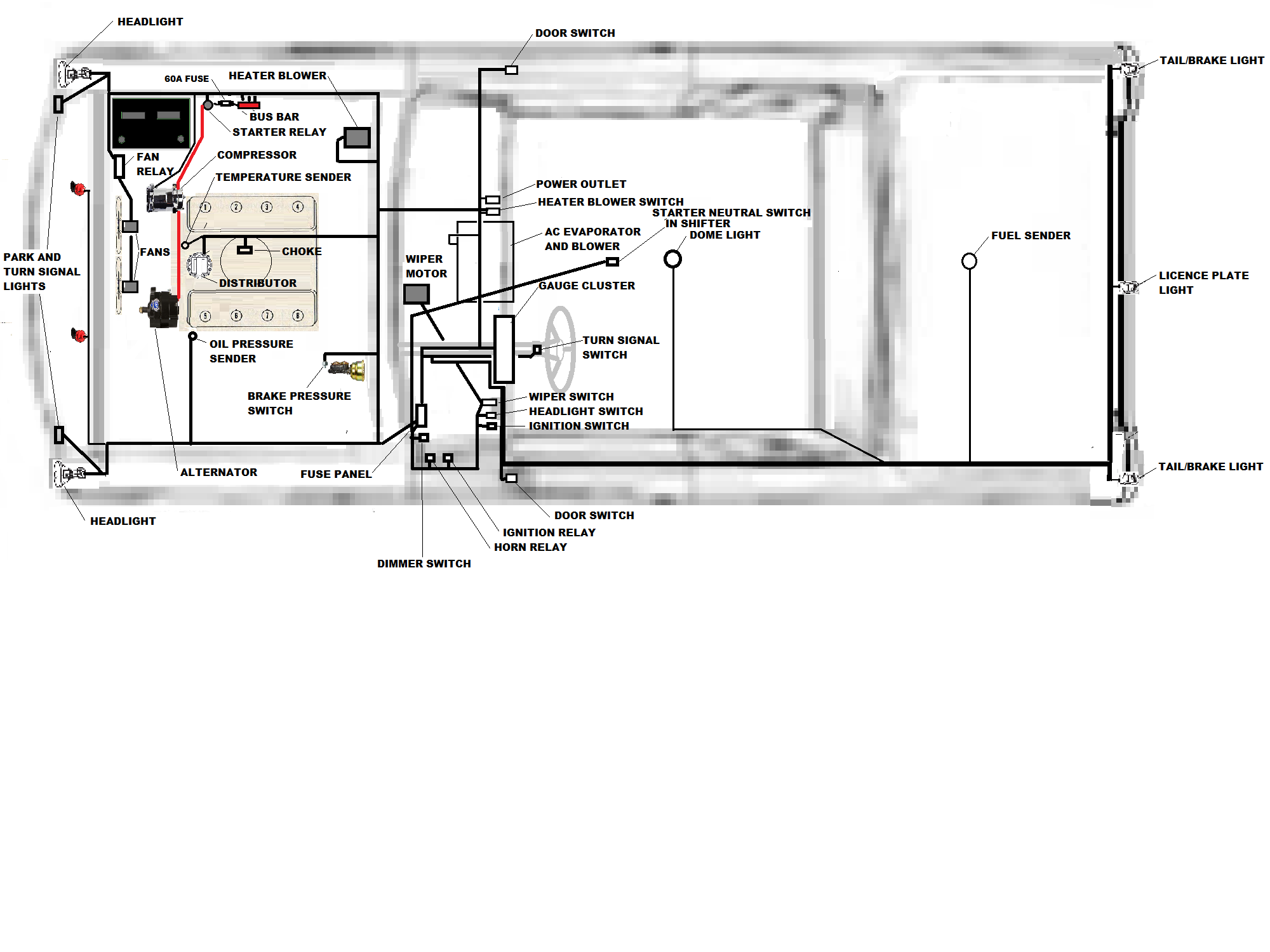

201 - Wire Bundle Routing - Plan View.png

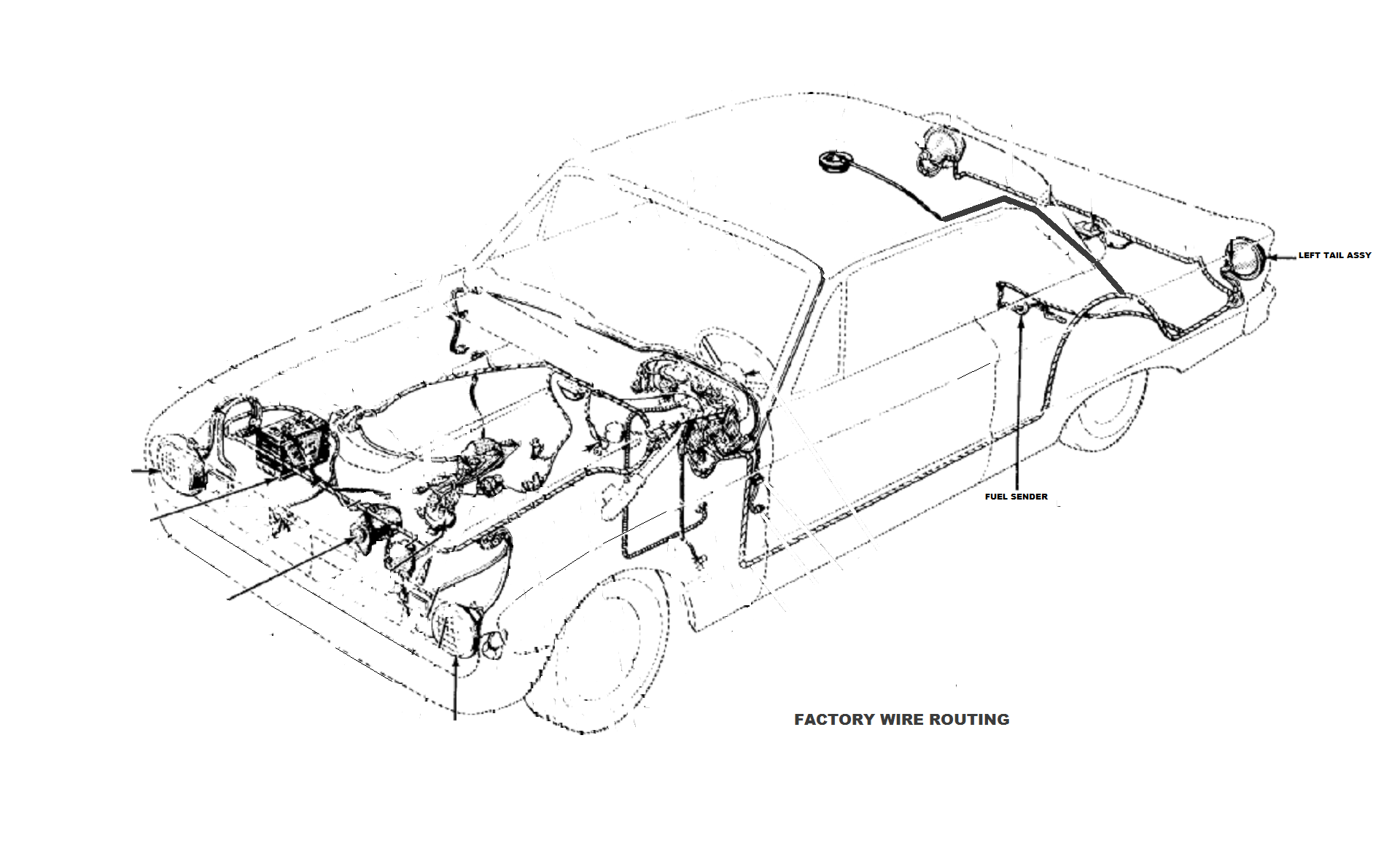

Body Outline.png
