62wagon - WIRING DIAGRAMS FOR KWIKWIRE KIT

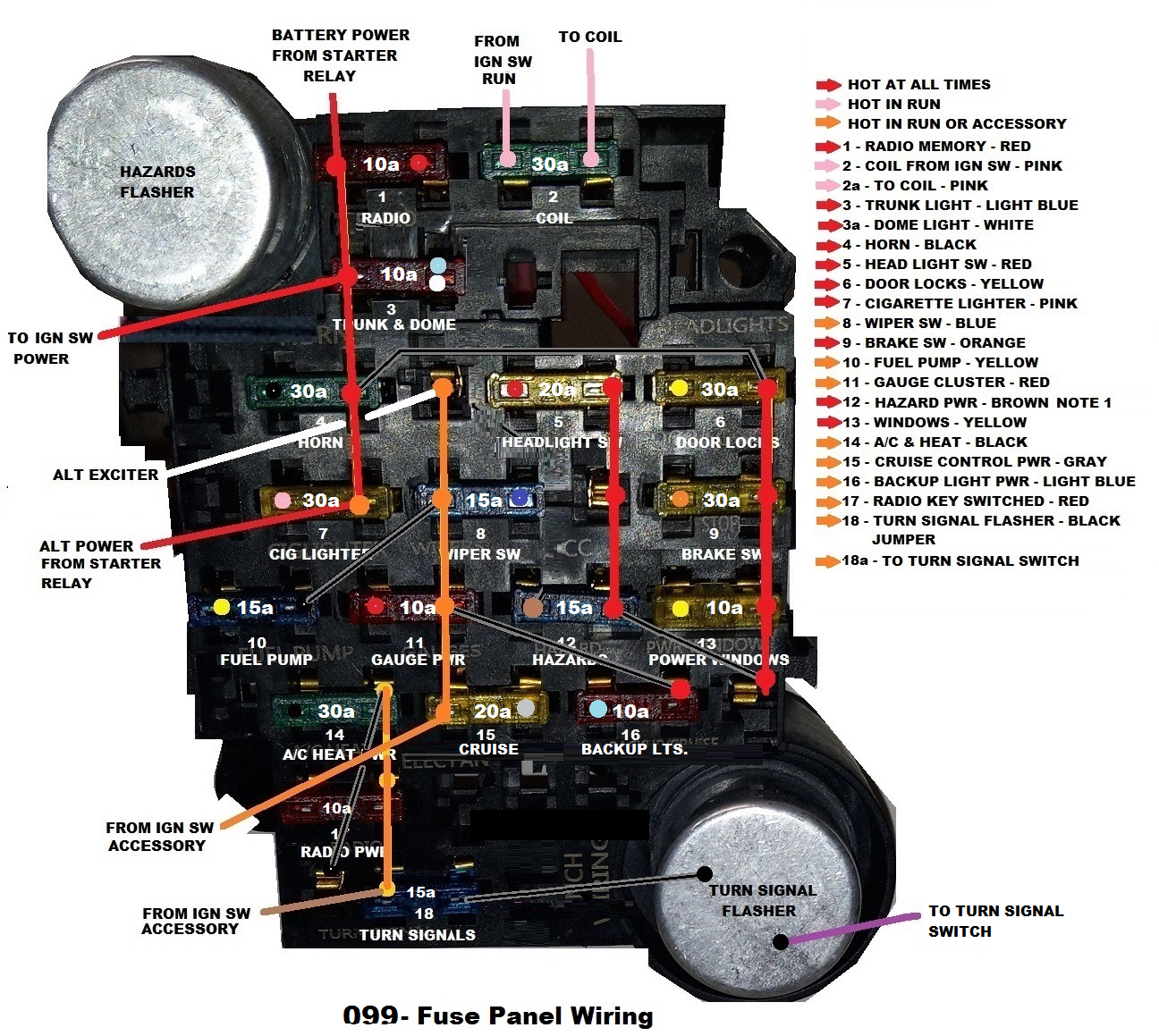

099 - Fuse Panel Wiring.png

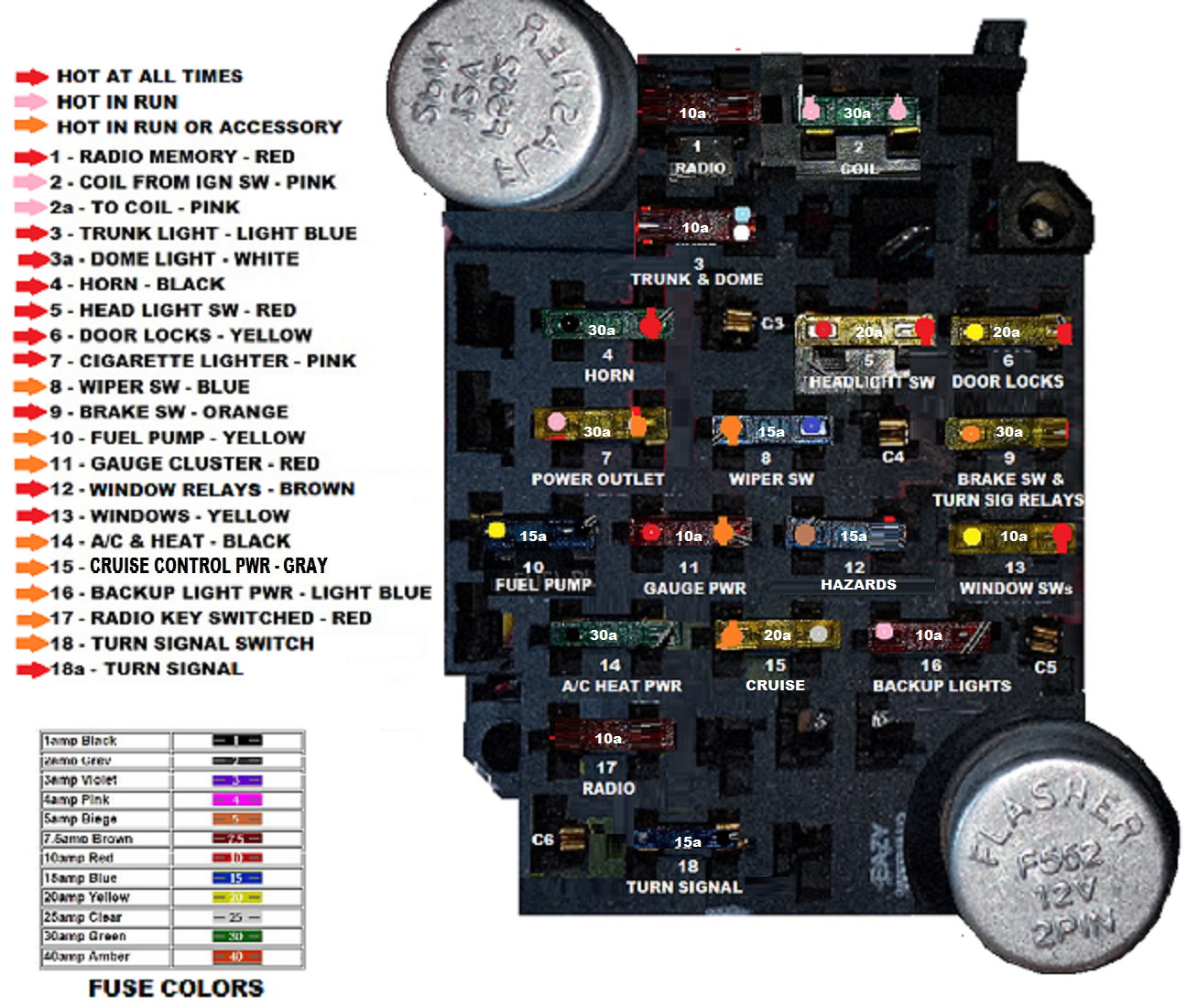

100 - Fuse Box Layout.png

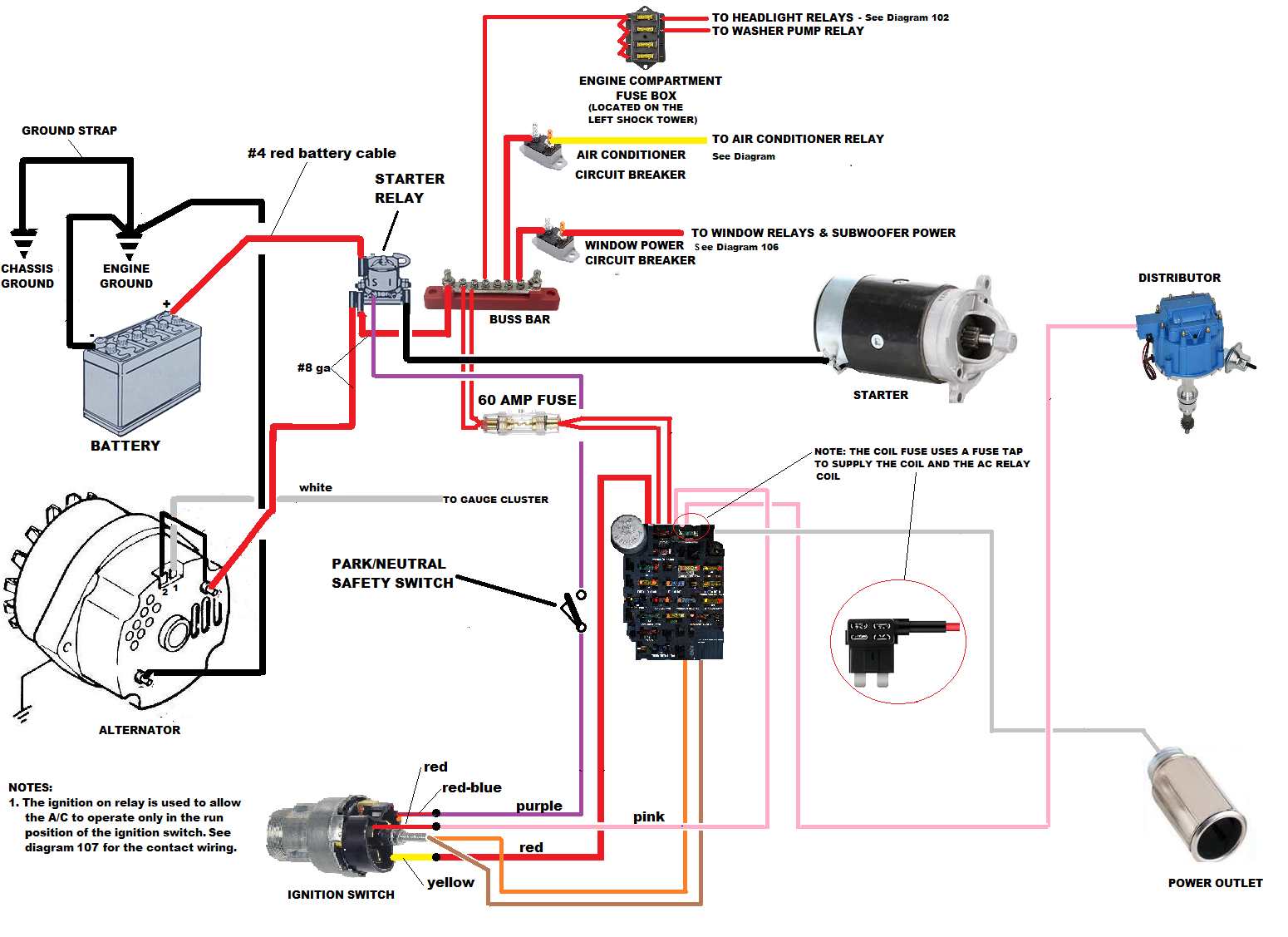

101 - Ignition, Starting & Charging.png

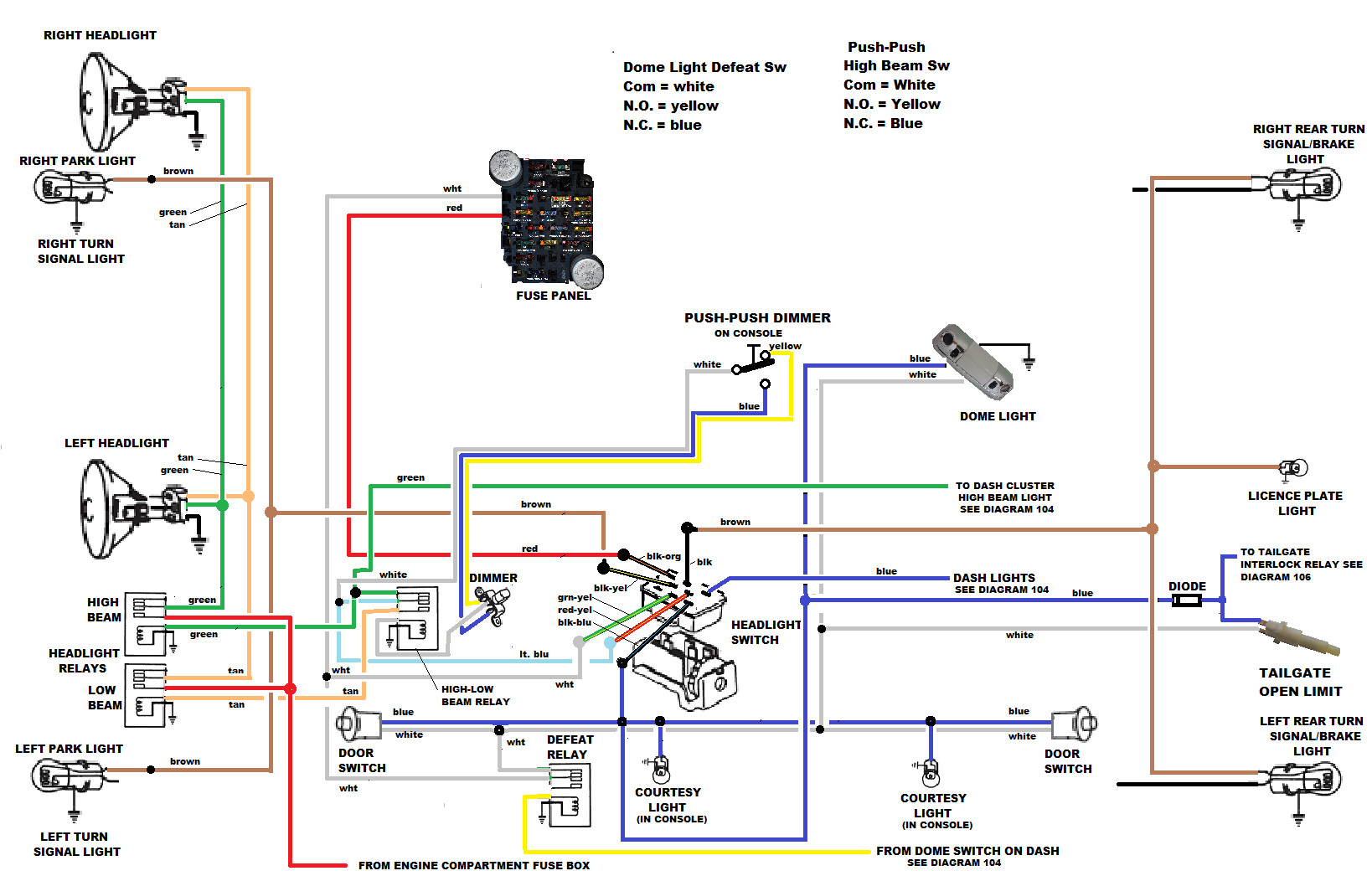

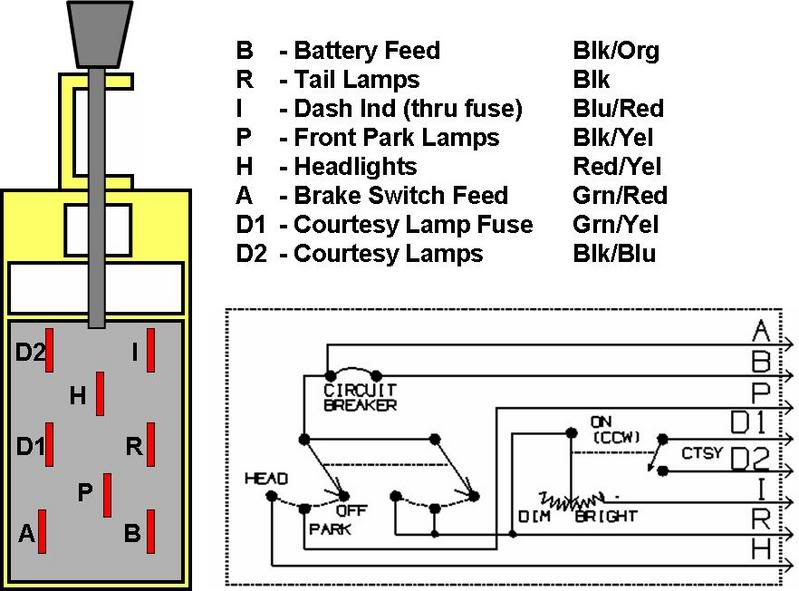

102 - Headlights, parking lights and tail lights.png

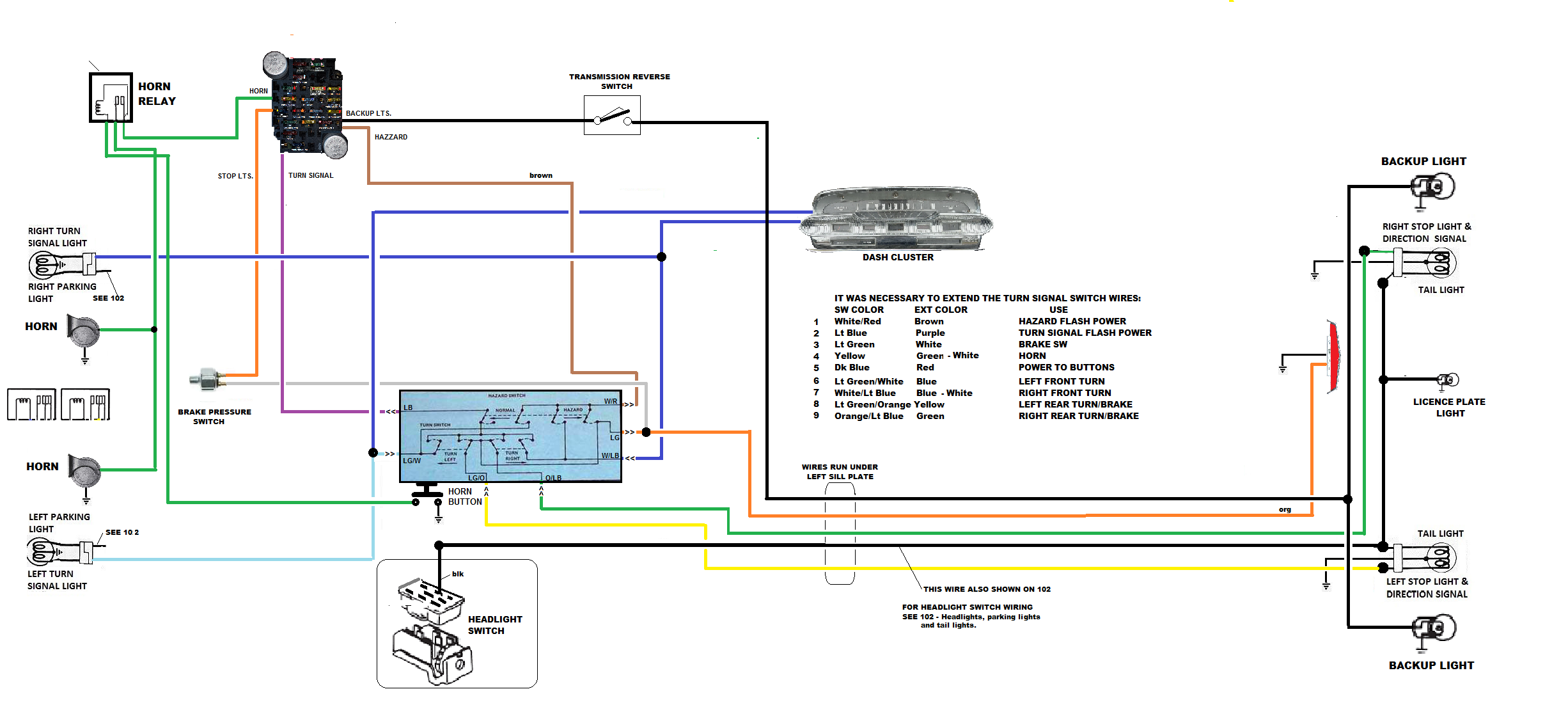

103 - Turn, Reverse and Brake Lights.png

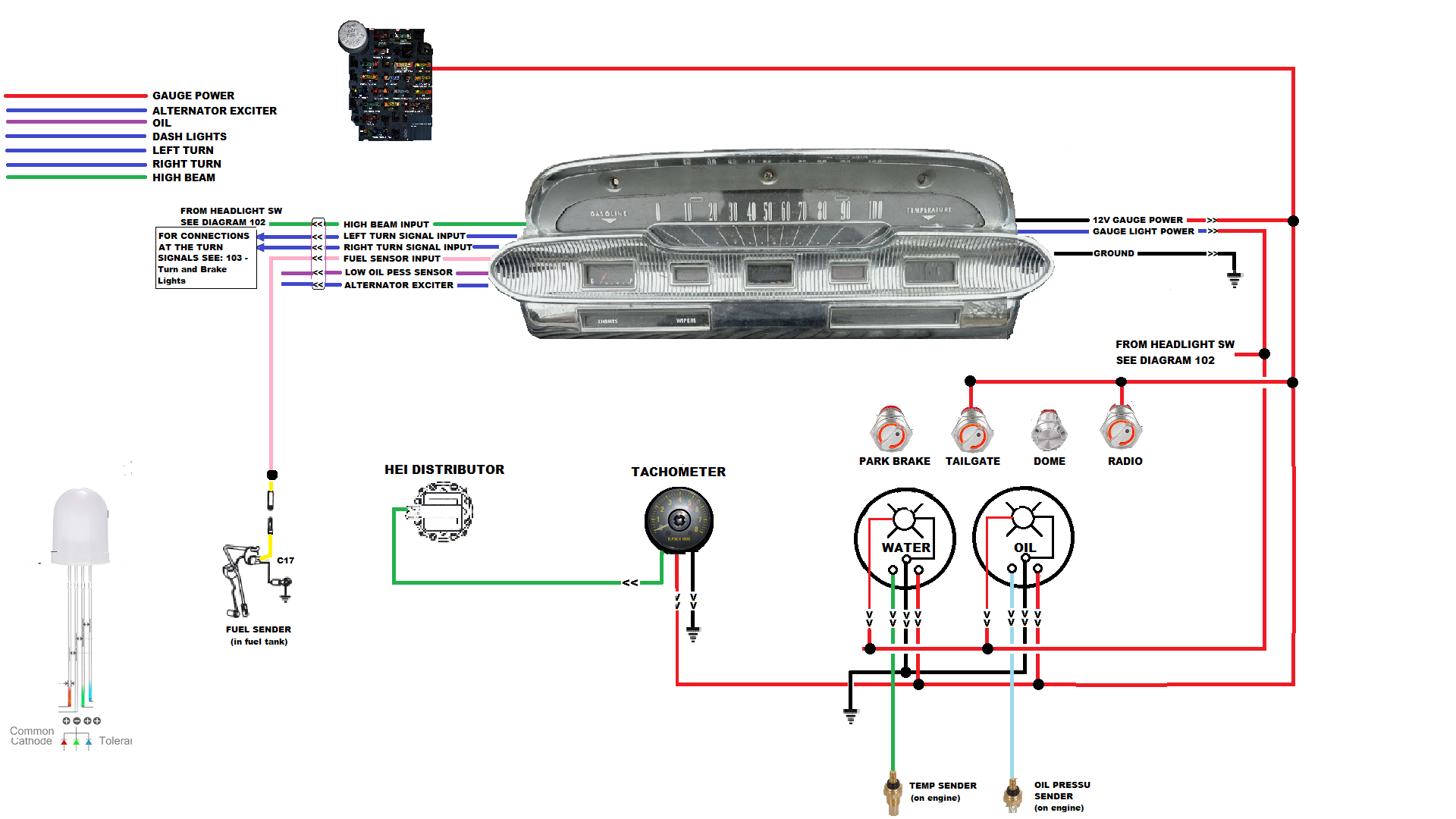

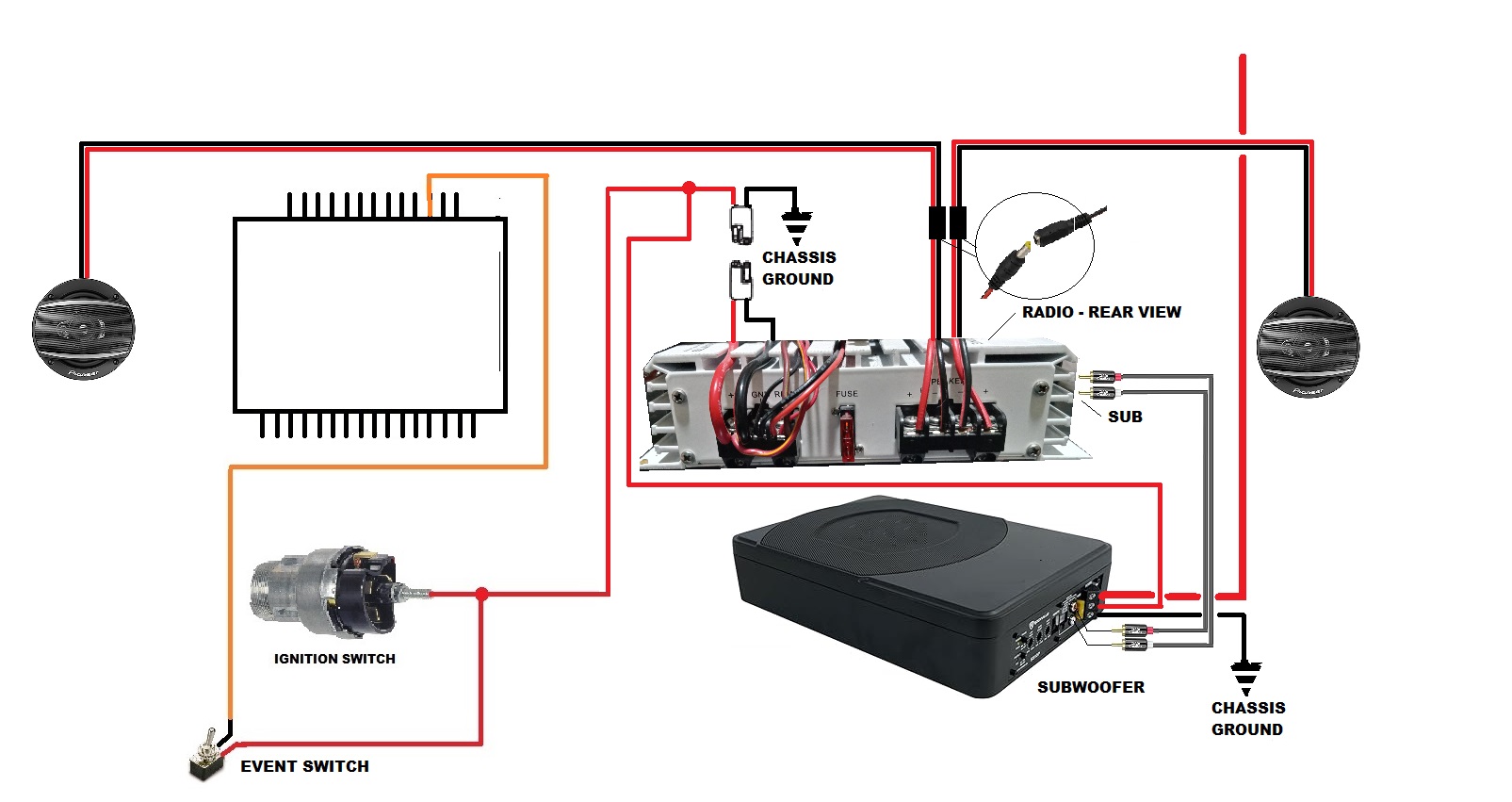

104 - Gauge Clusters.png

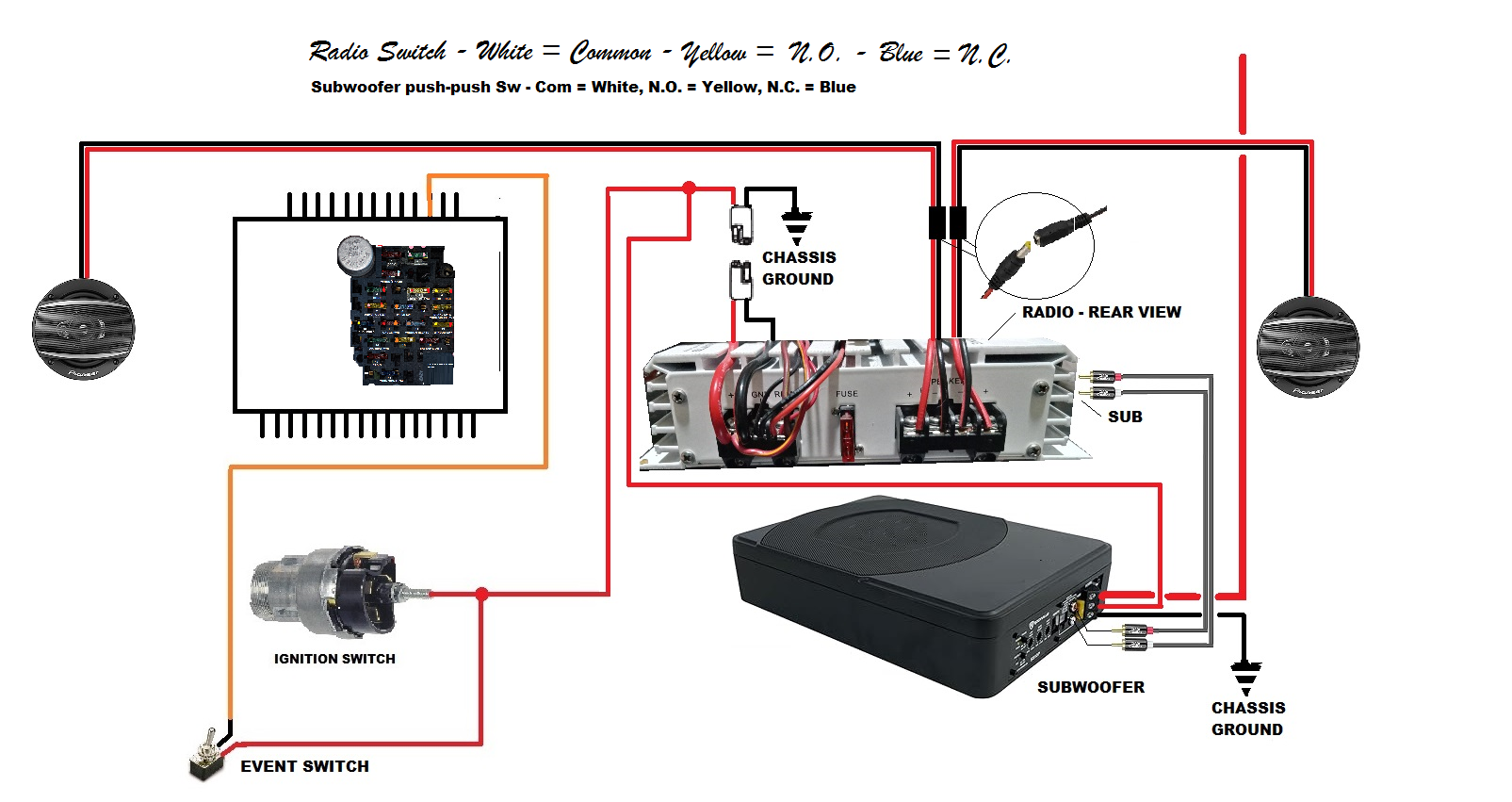

105 - Radio Hookup.jpg

105 - Radio Hookup.png

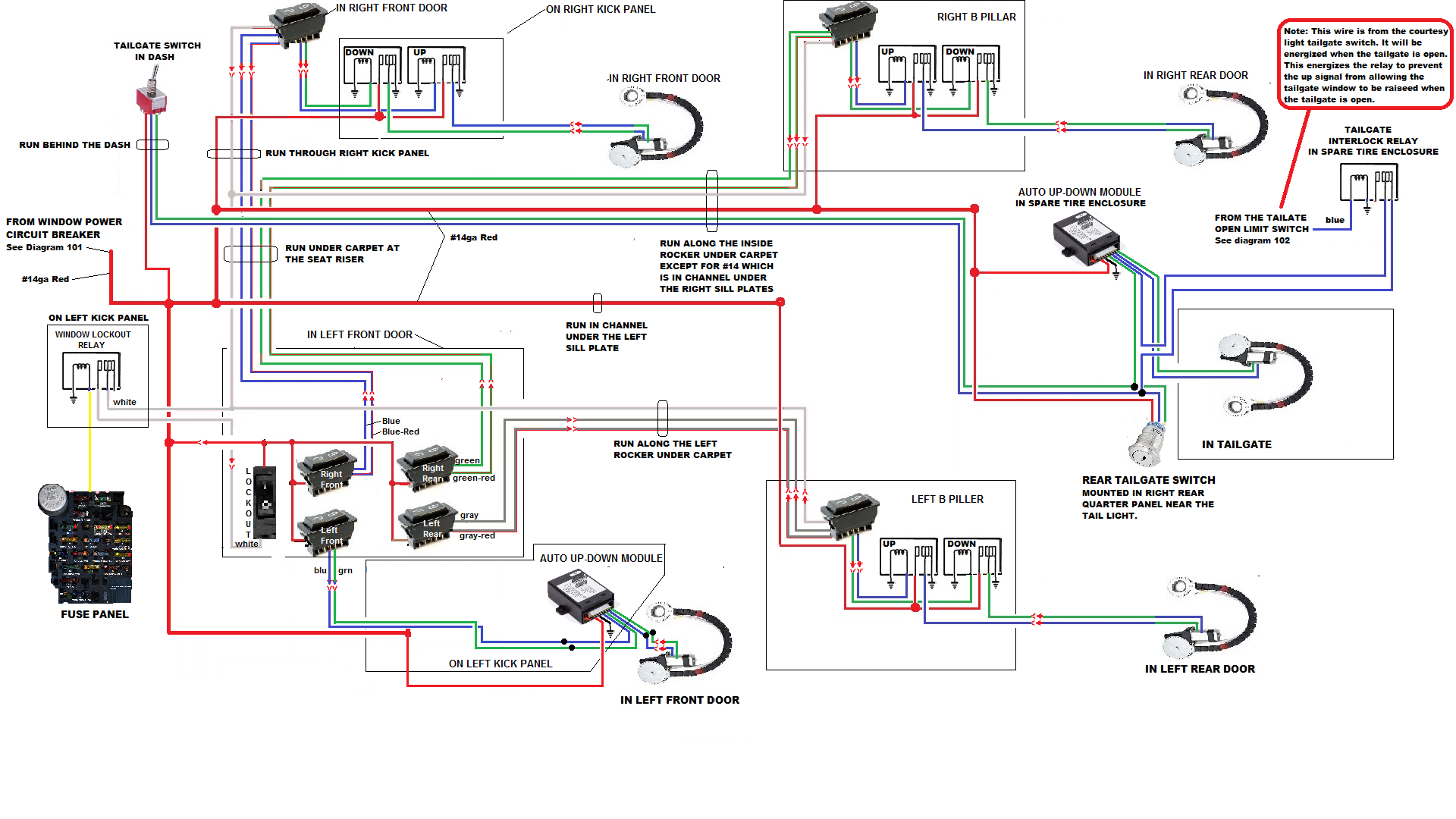

106 - Power Windows and Tailgate.png

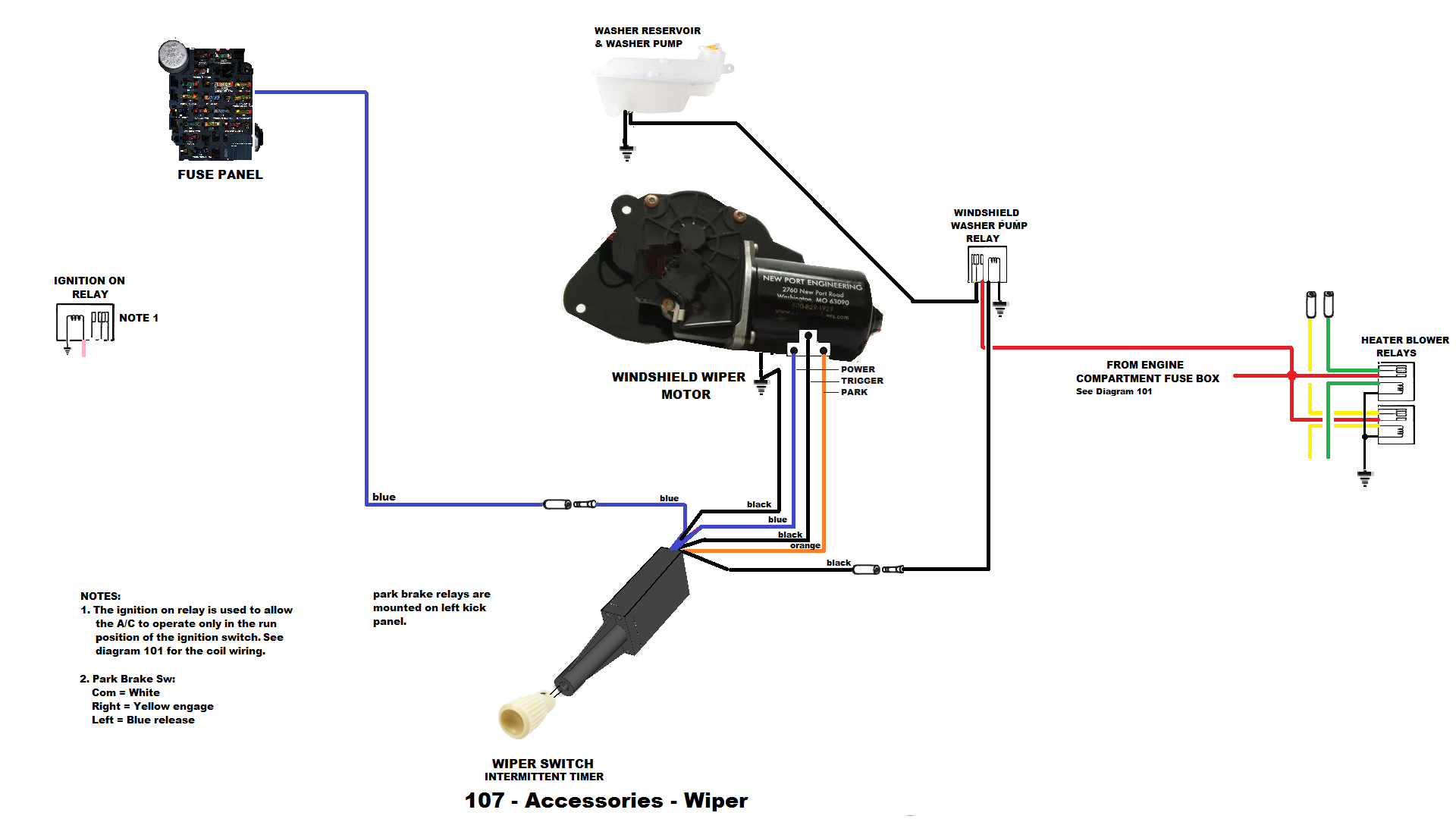

107 - Accessories - Wiper - AC - Heater.png

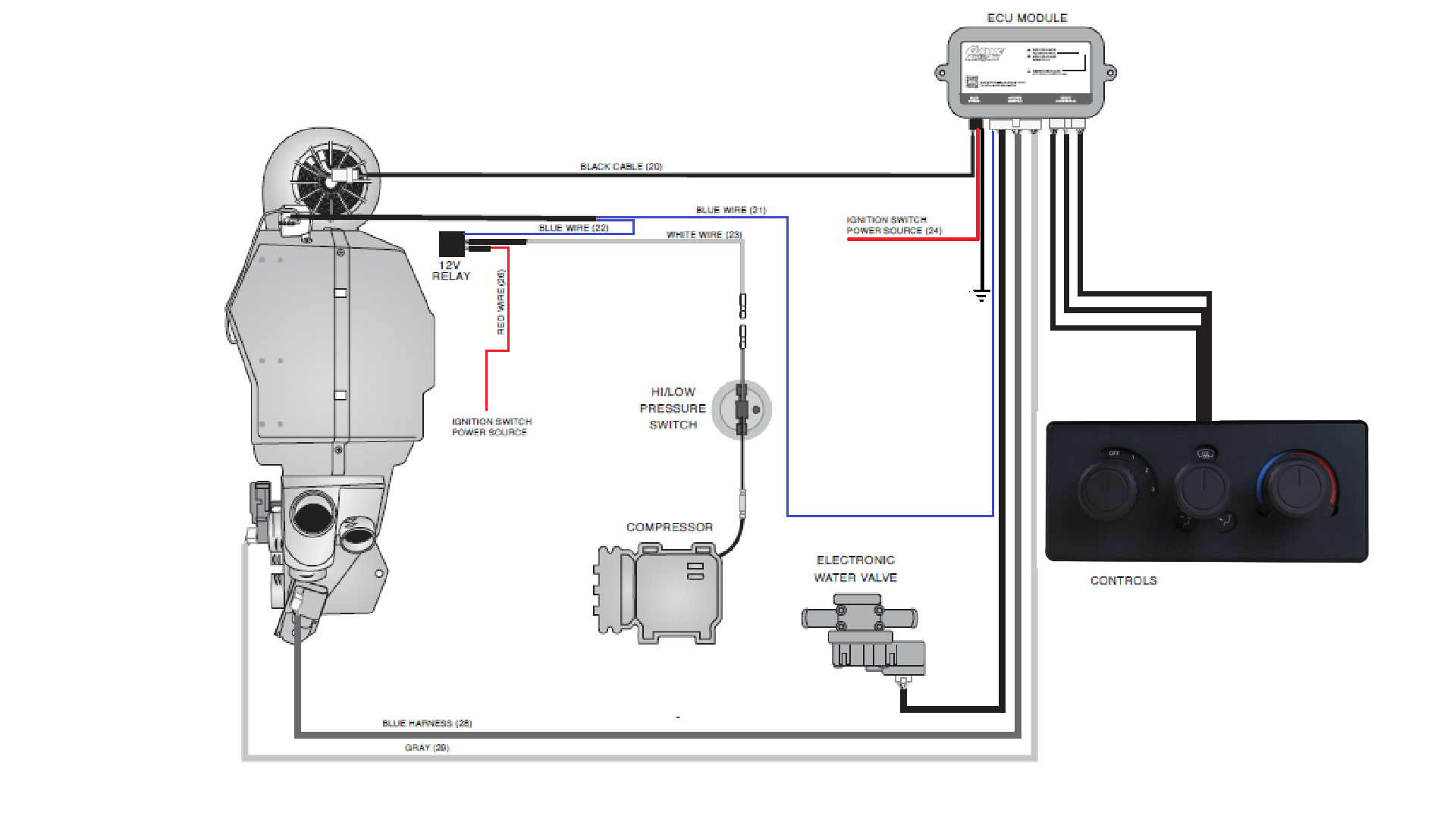

108 - Air Conditioner.png

108 - Door Locks.png

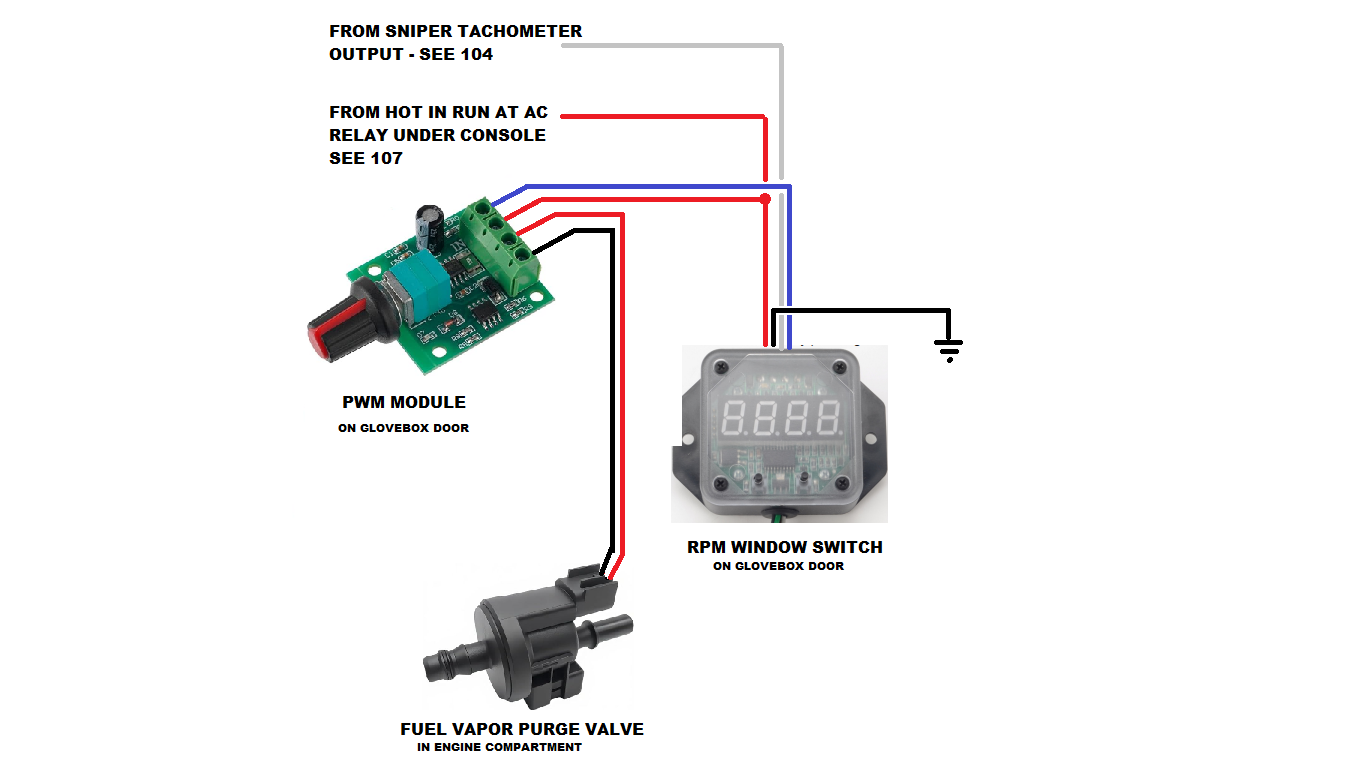

109 - EVAP System.png

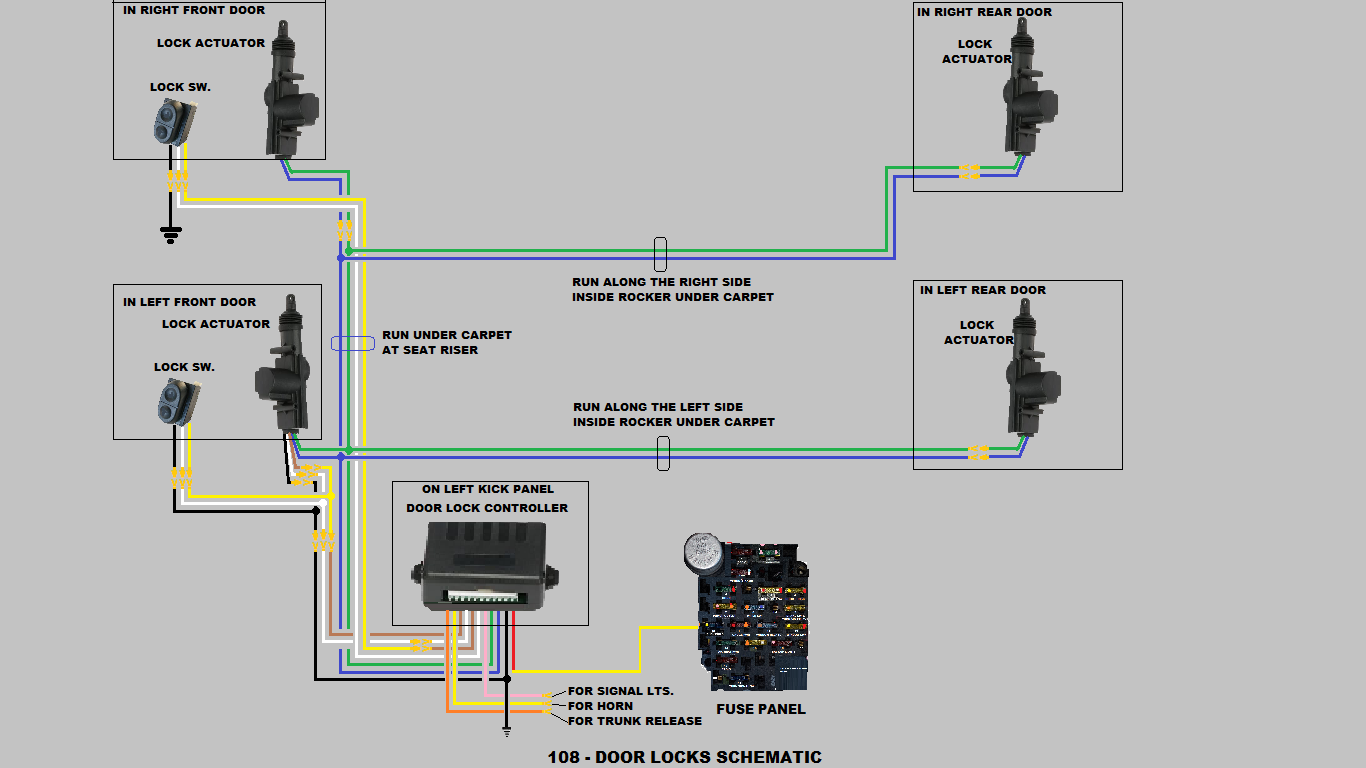

110 - Door Locks.png

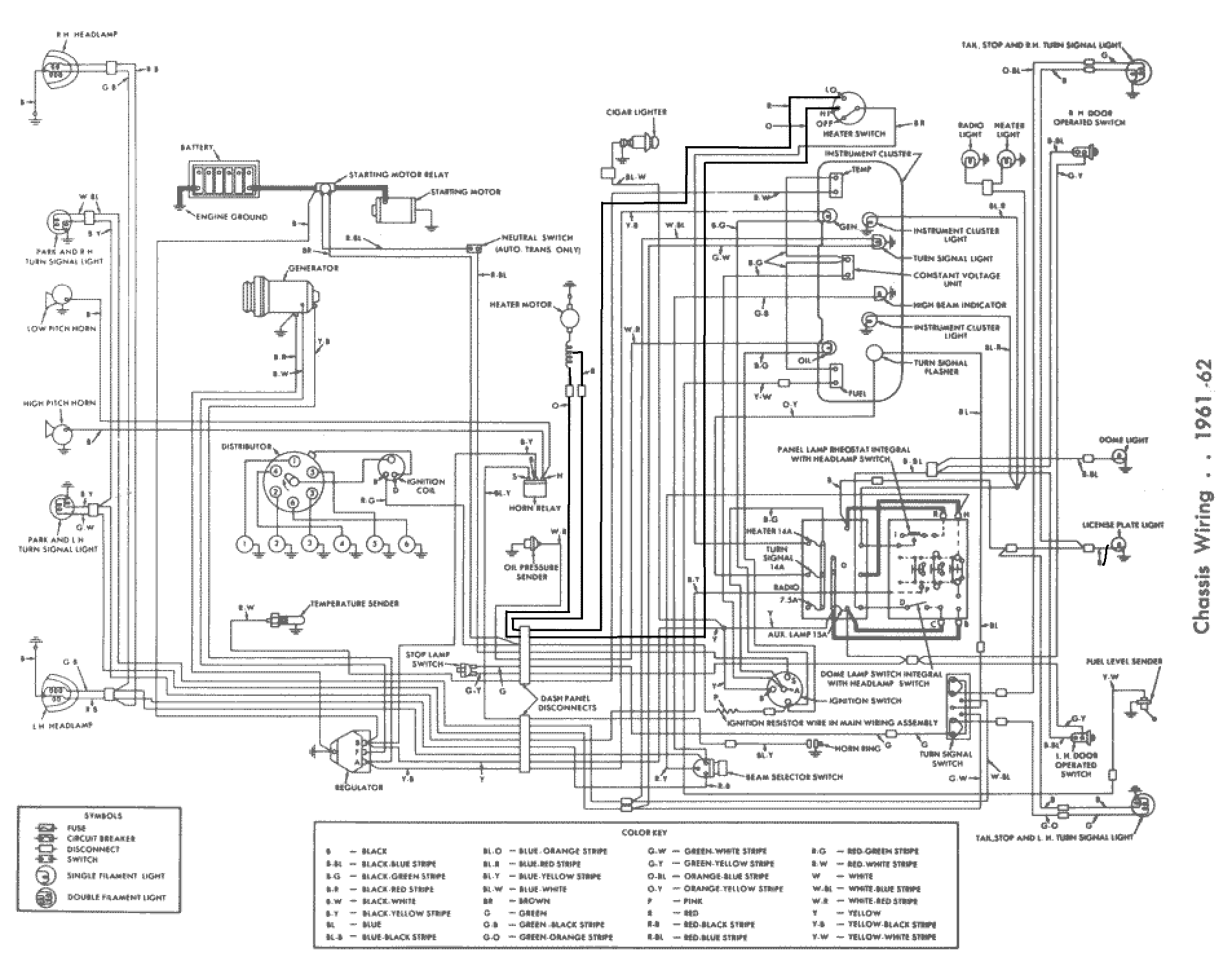

Chassis Wiring Left Half.png

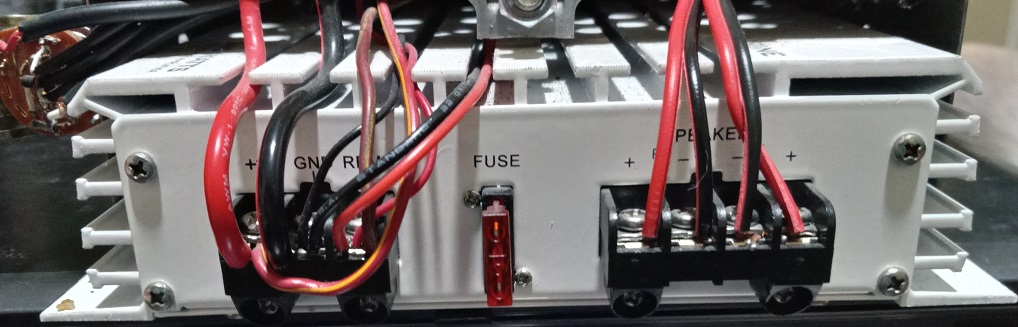

Radio Connections.jpg

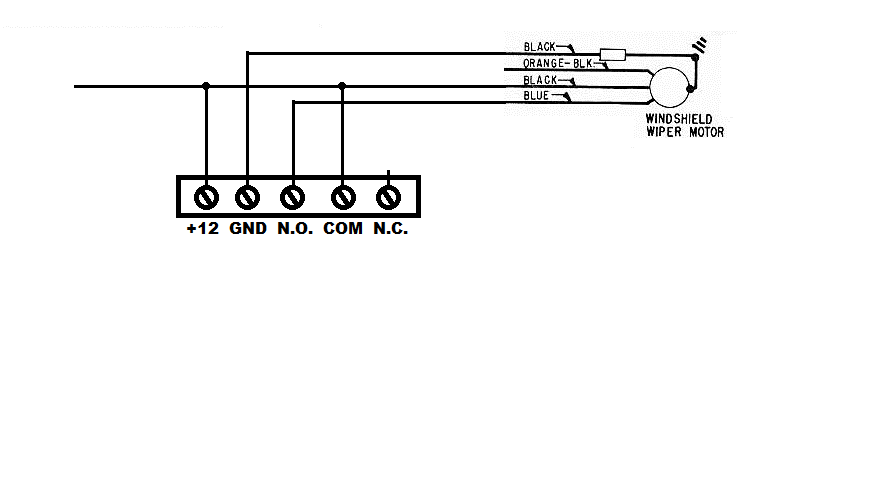

Wiper Wiring.png
