t-bird - FACTORY WIRE ROUTING

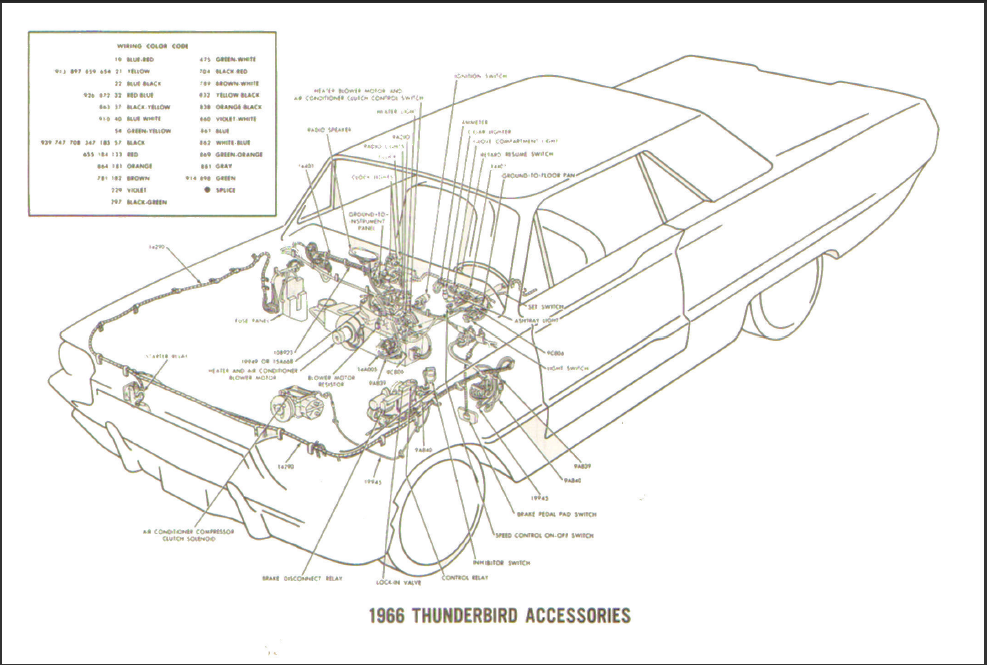

01-1966 Thunderbird Accessories

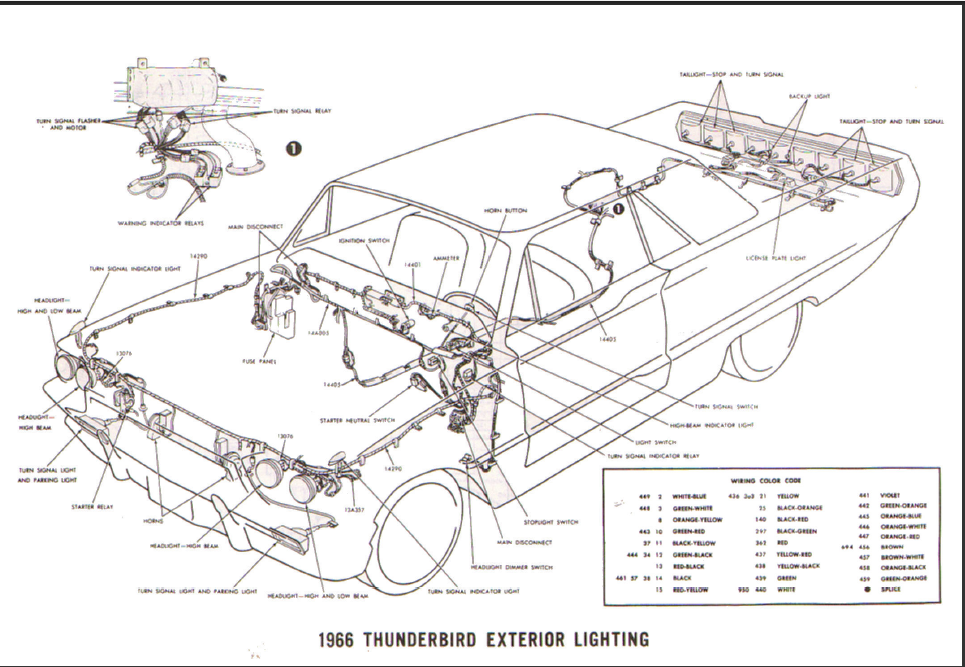

02-1966 Thunderbird Exterior Lighting

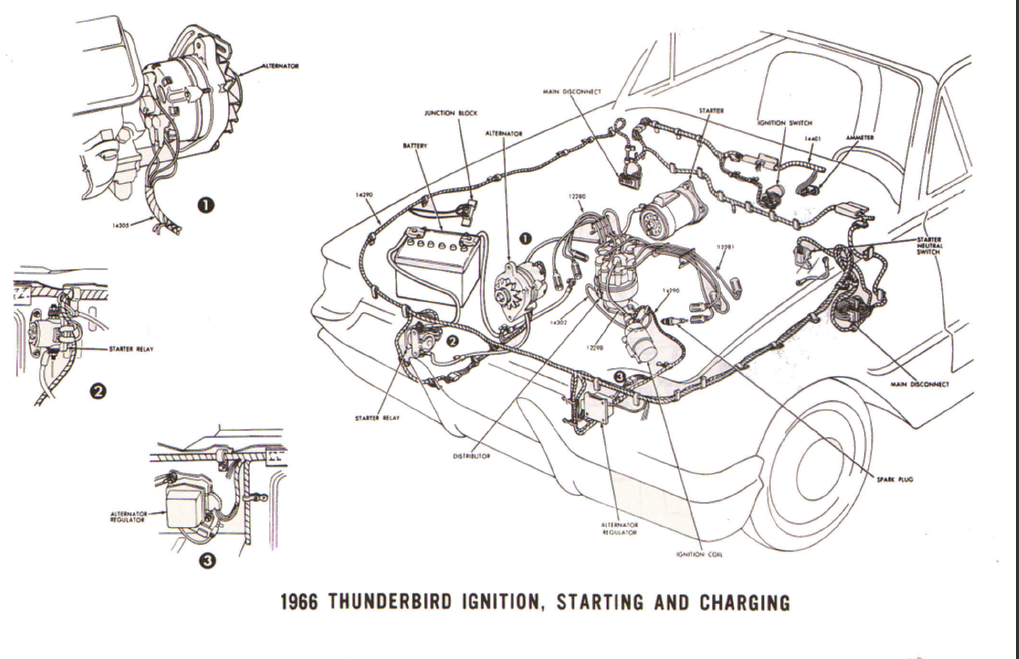

03-1966 Thunderbird Ignition, Starting and Charging

04-Factory Dash Harness

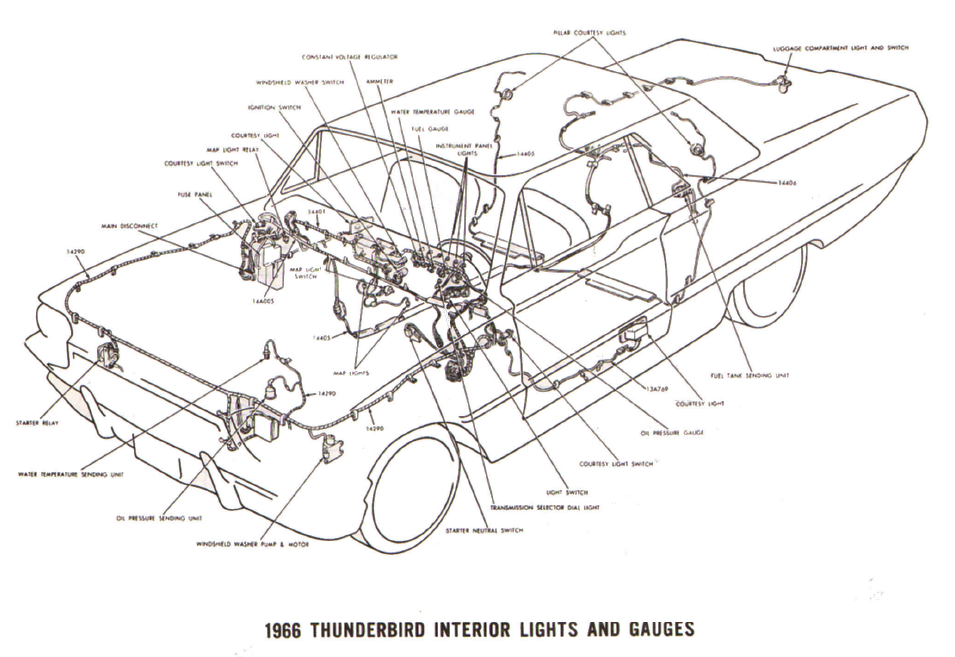

05-1966 Thunderbird Interior Lighting and Gauges

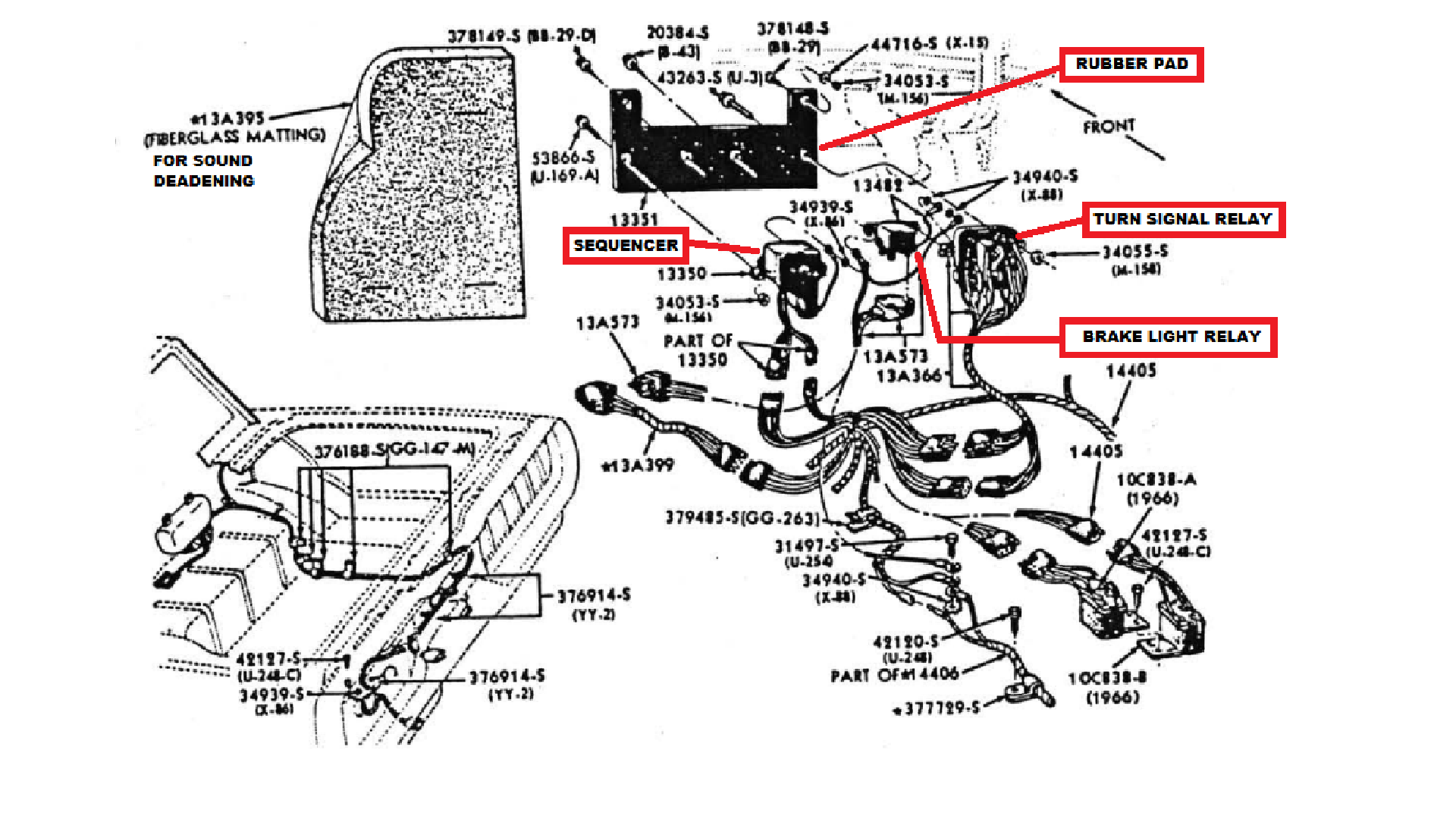

06-1966 Thunderbird Sequential Turn Signals

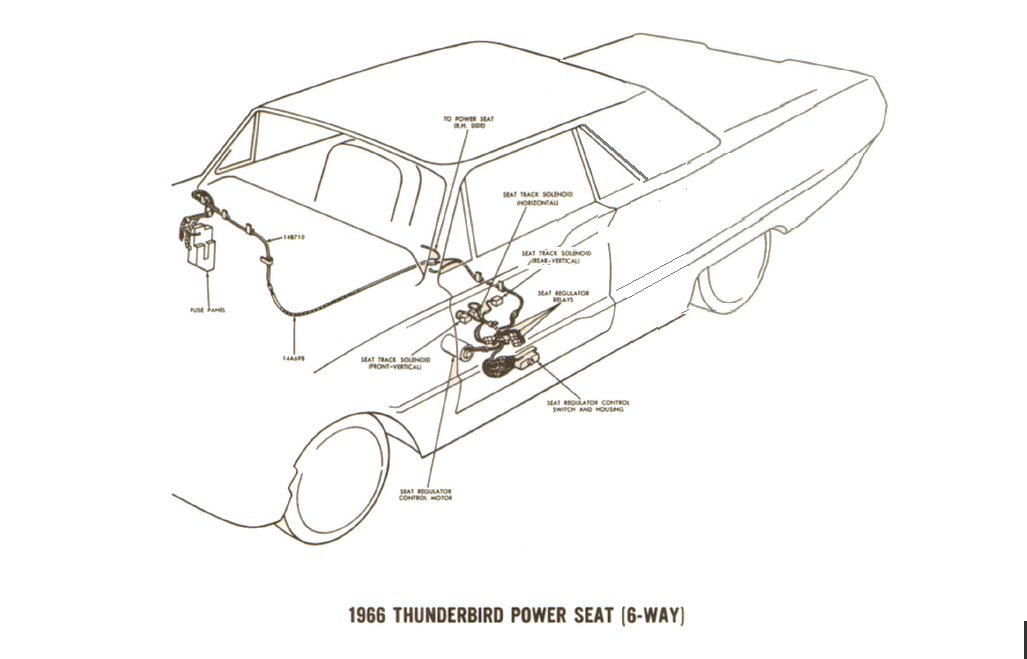

07-1966 Thunderbird 6- Way Power Seat

08-1966 Thunderbird Power Windows

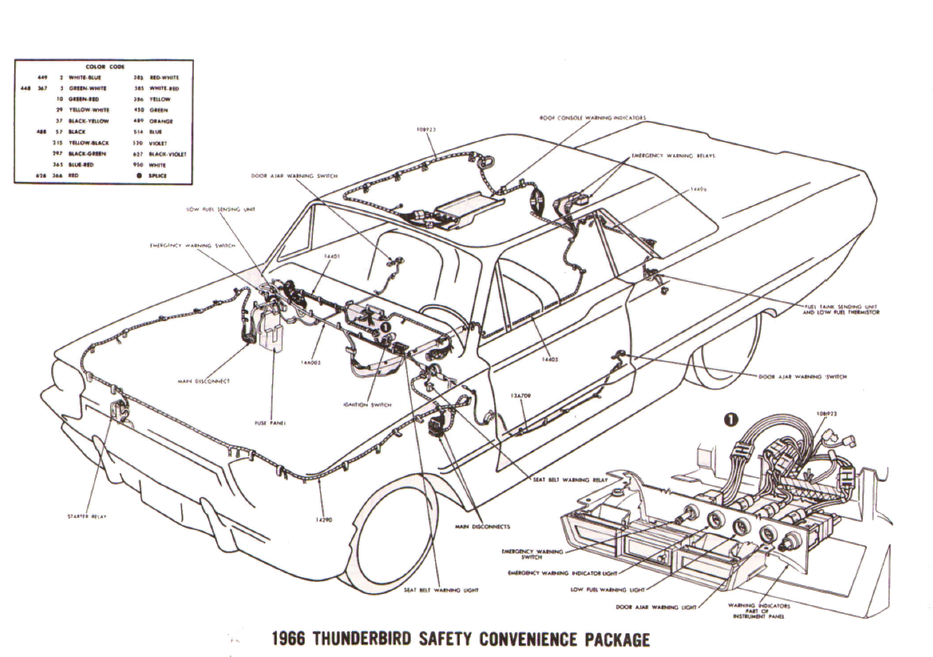

09-1966 Thunderbird Safety Convenience Package

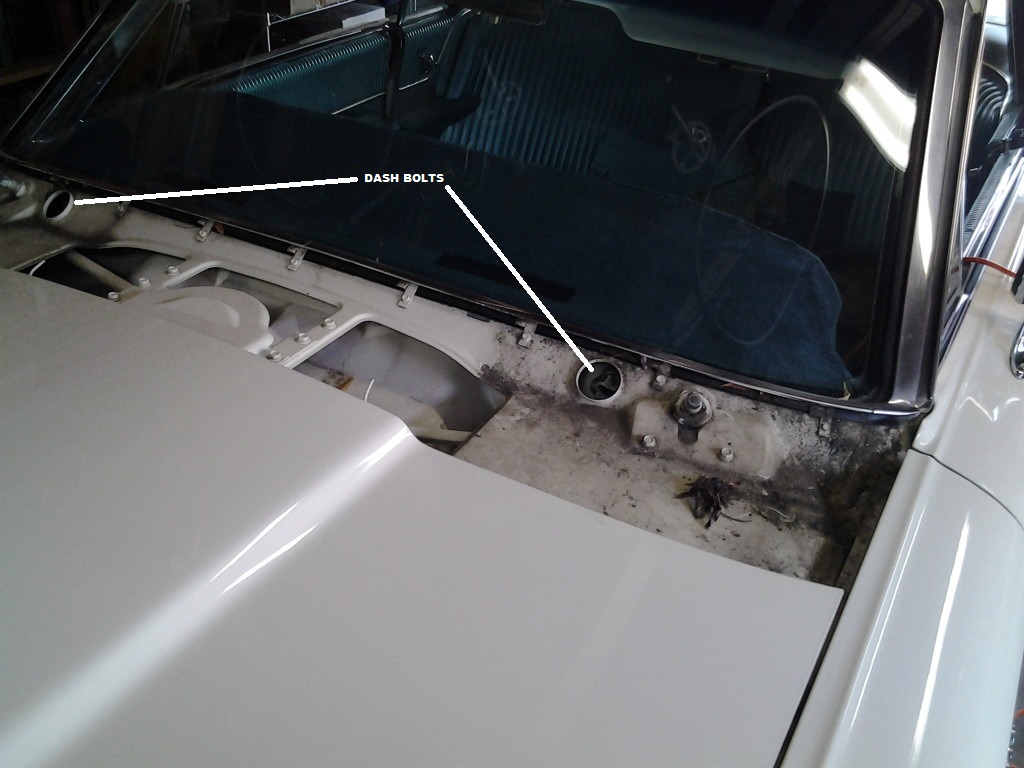

Cowl Removed

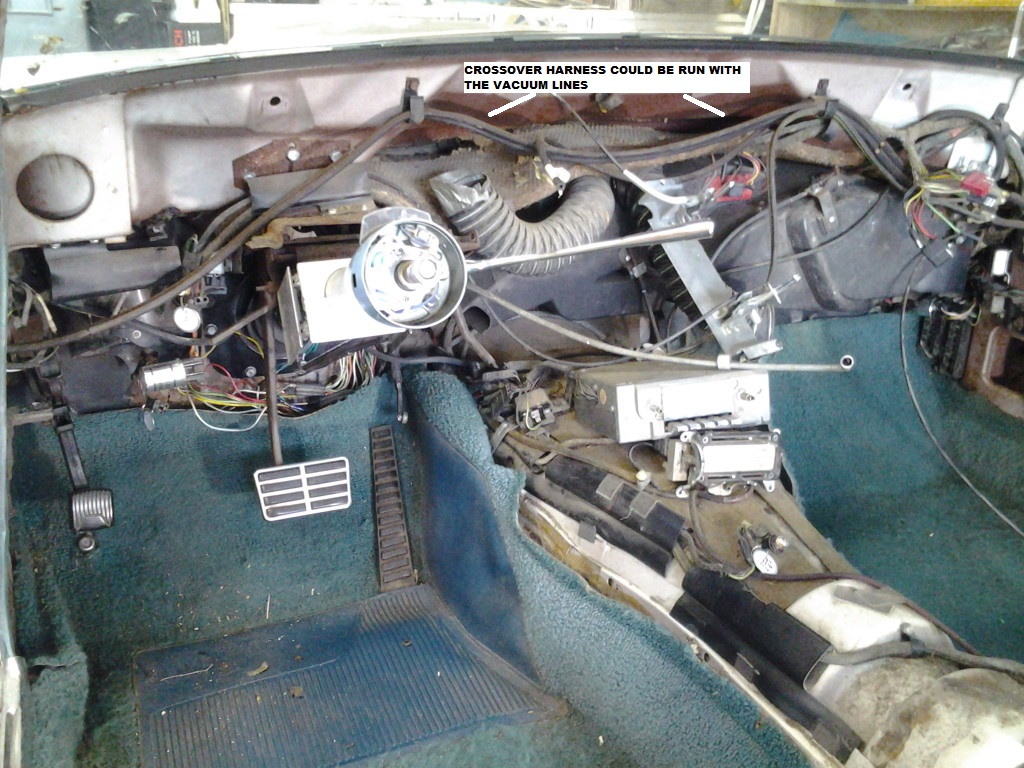

Dash Removed

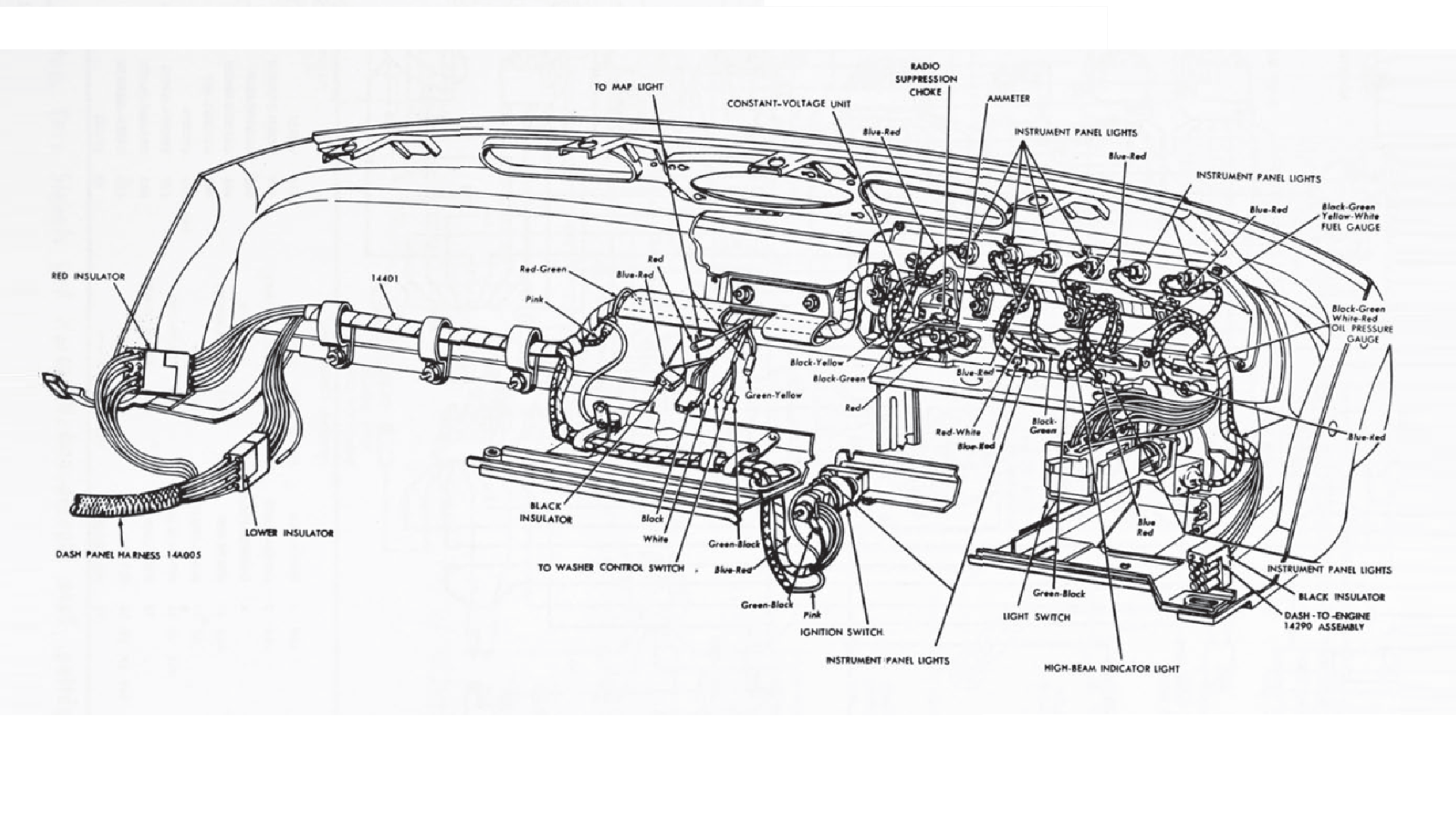

Factory Dash Harness

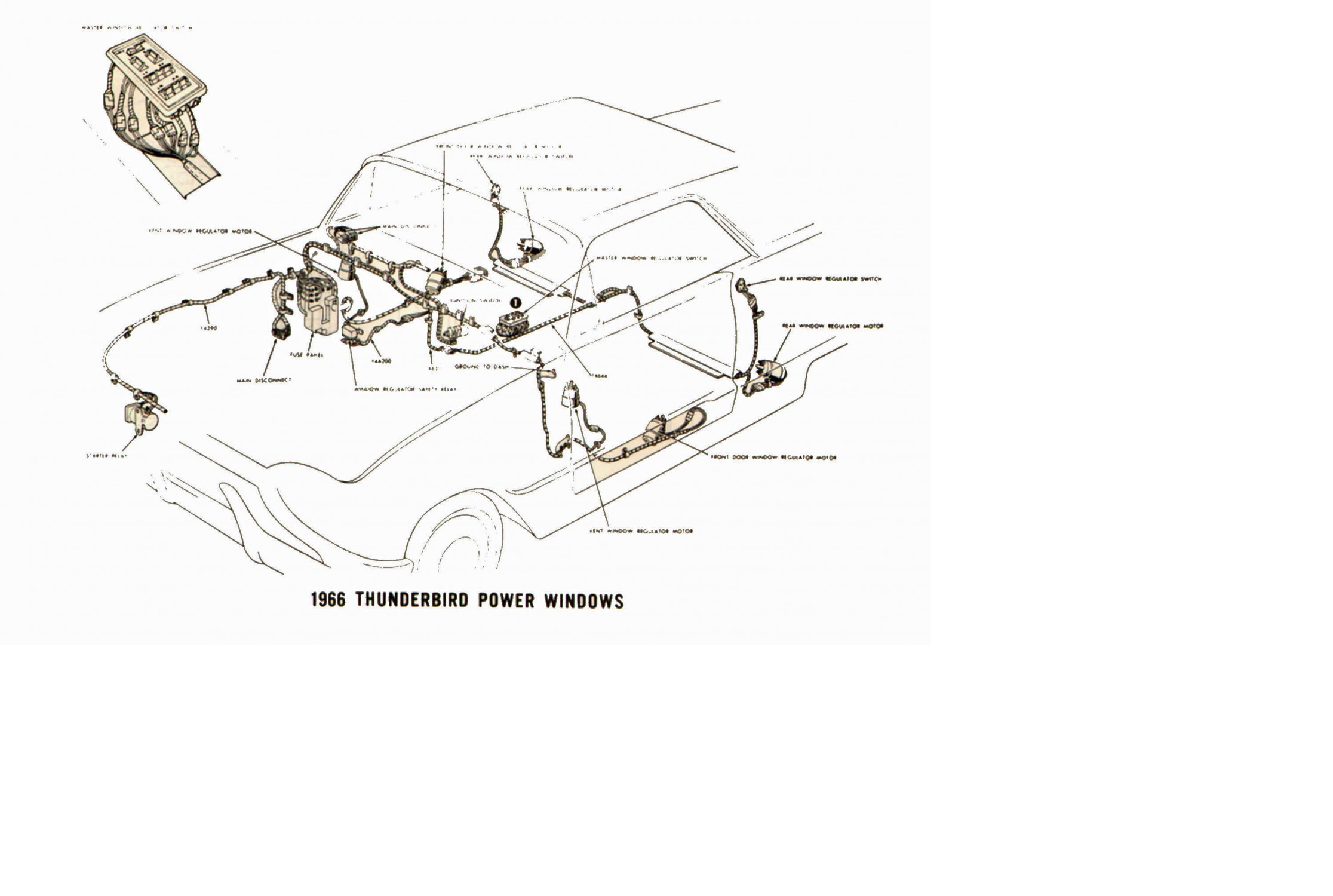

Factory Wiring Power Windows

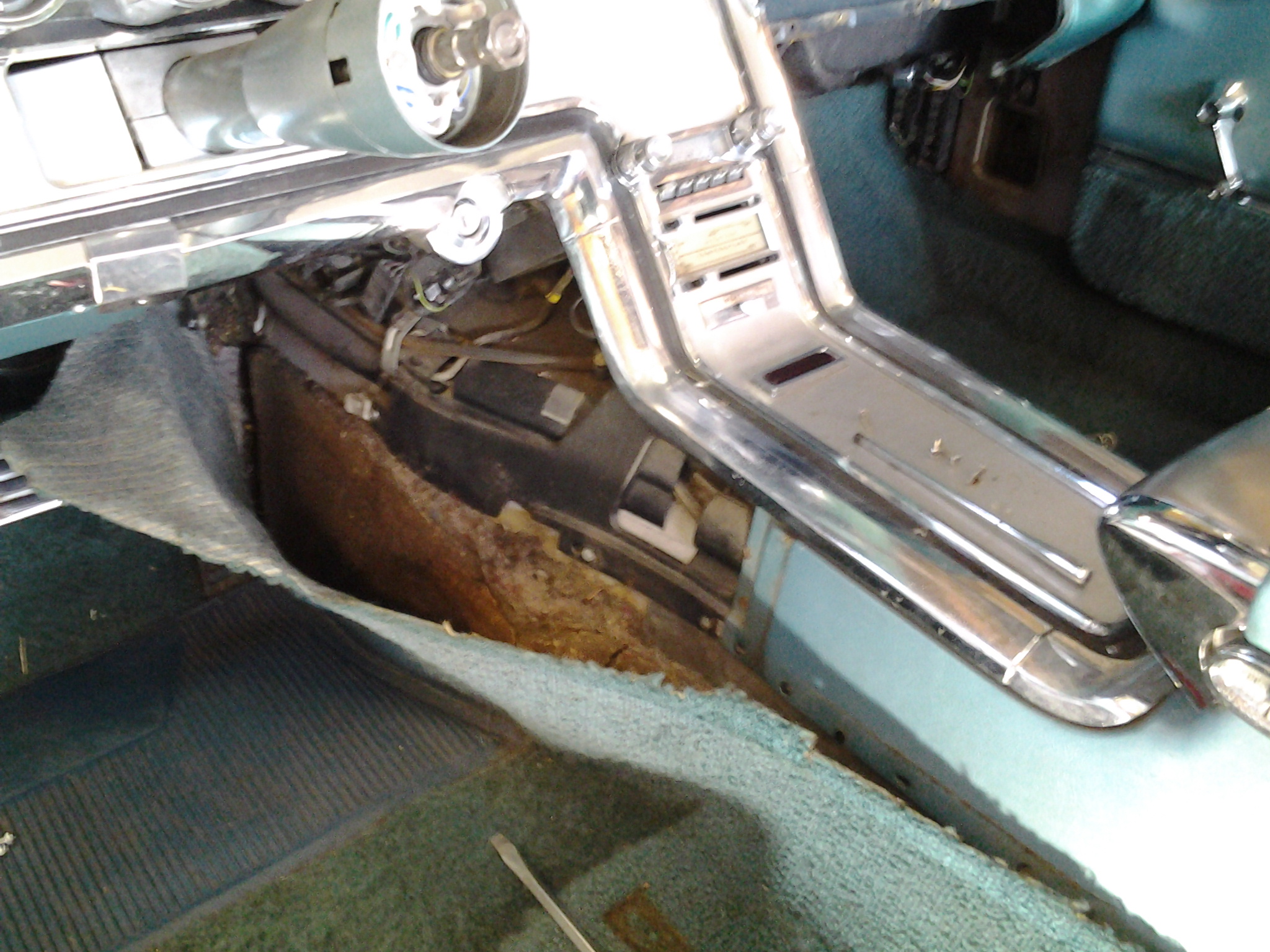

Harness From Under Console to Firewall

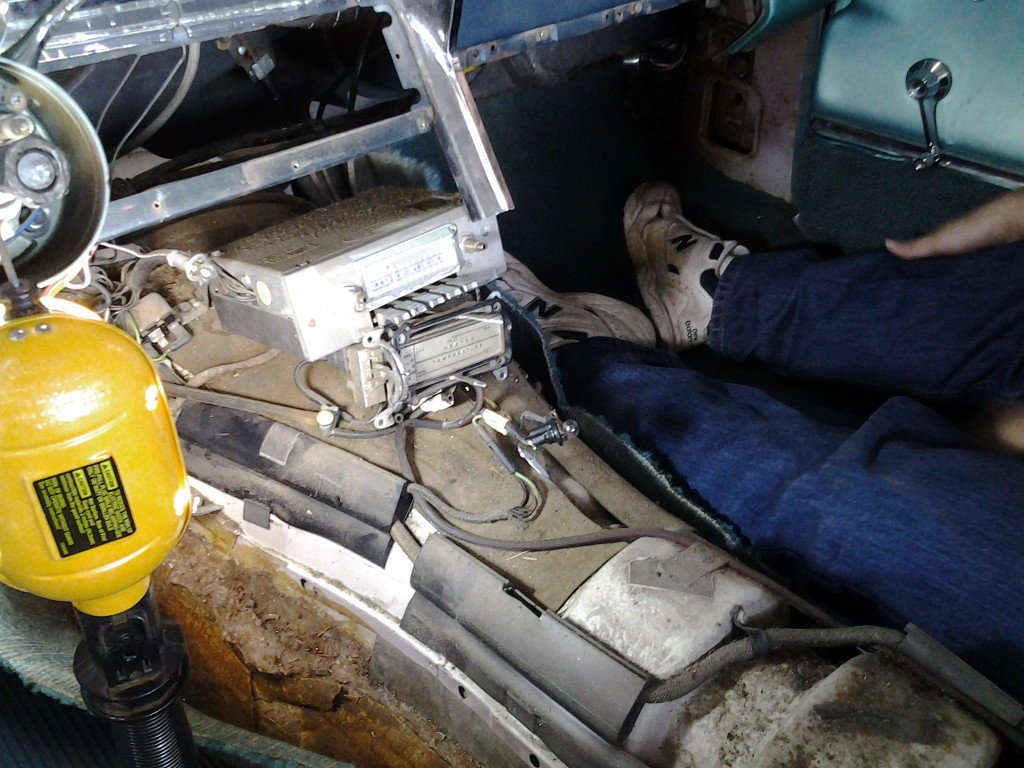

Harness Under Condole

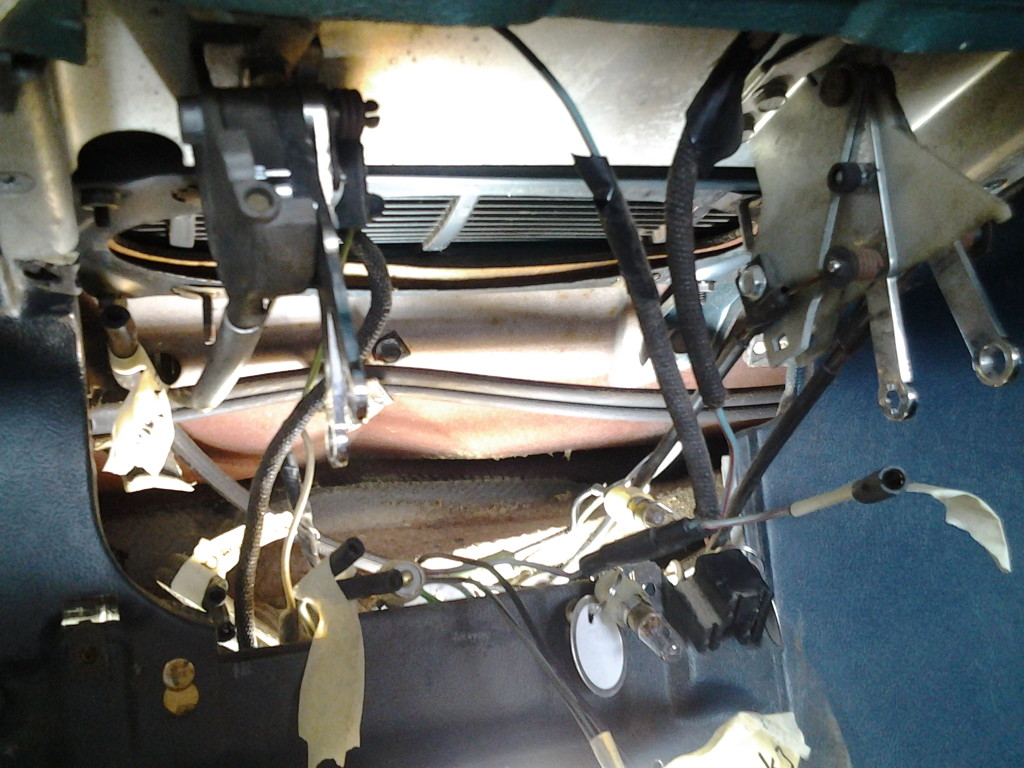

Inside Clock Housing

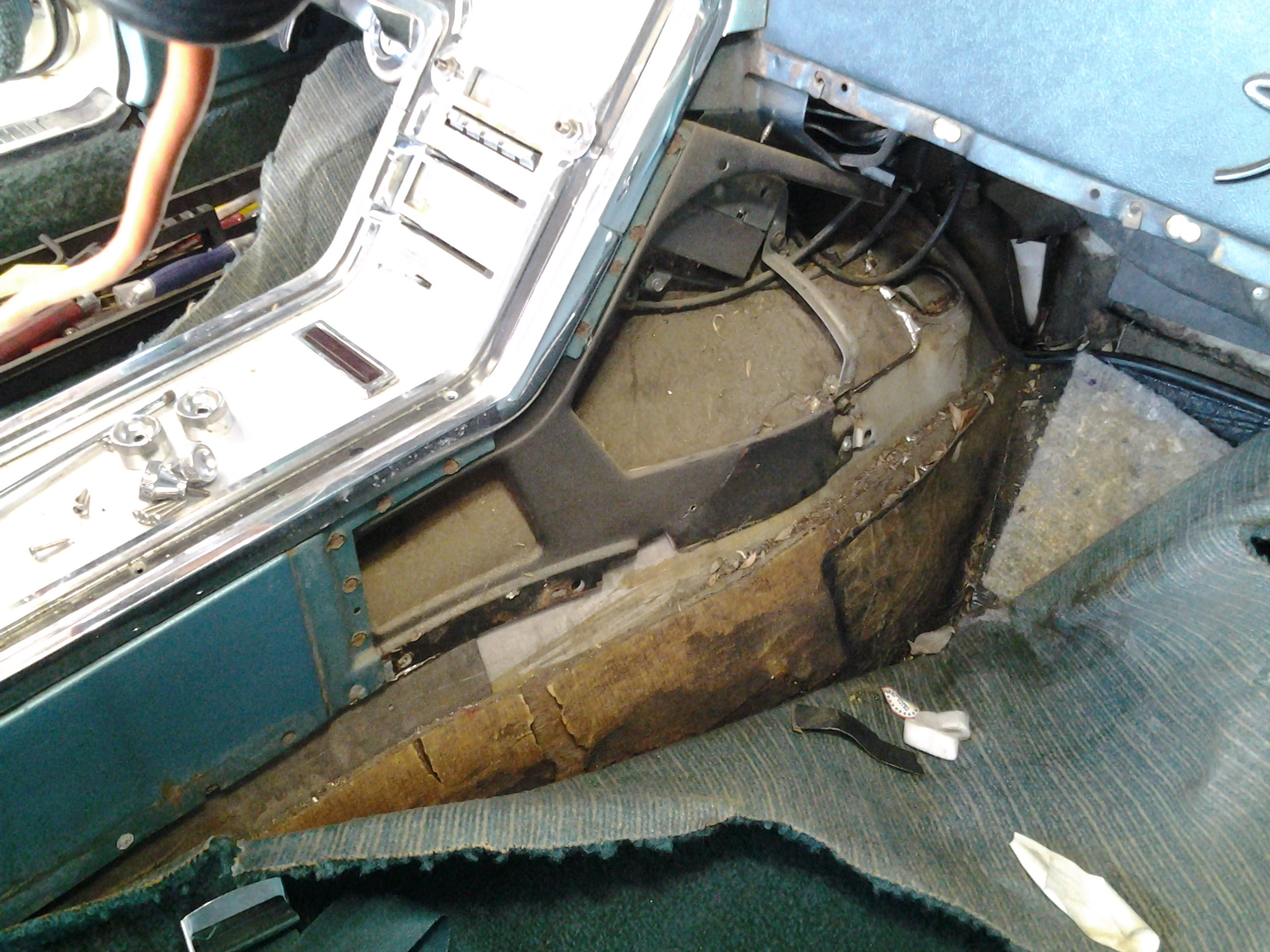

Right Side Under Console

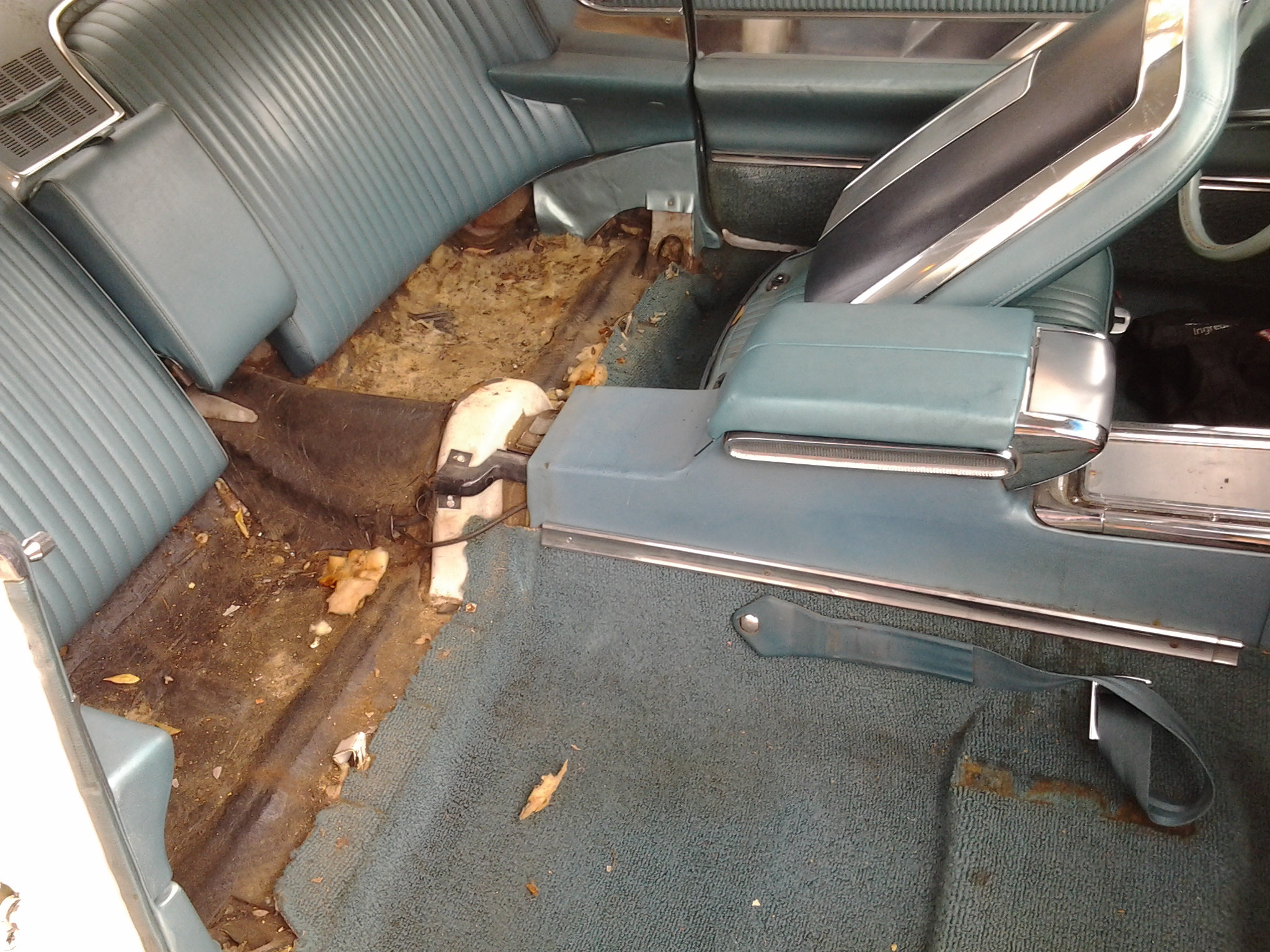

Under Back Seat
